Key Specs
- Maximum Lift Capacity: 12000 lb / 5443.11 kg
- Outriggers Up Max Lift Height: 55 ft / 16.76 m
- Maximum Lift Height: 55 ft / 16.76 m
- Maximum Reach: 42 ft / 12.8 m
Key Features

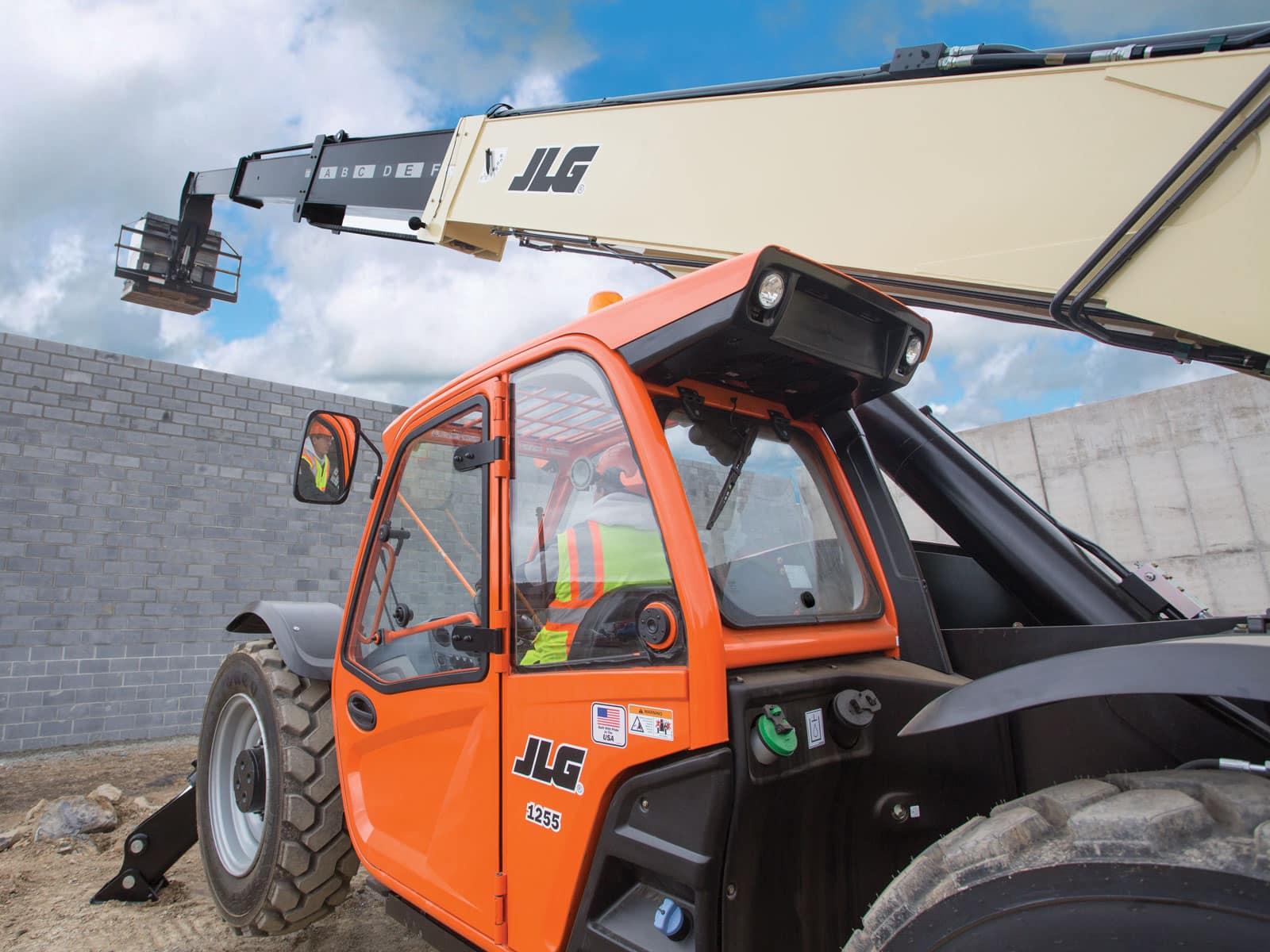

- Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
- Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance

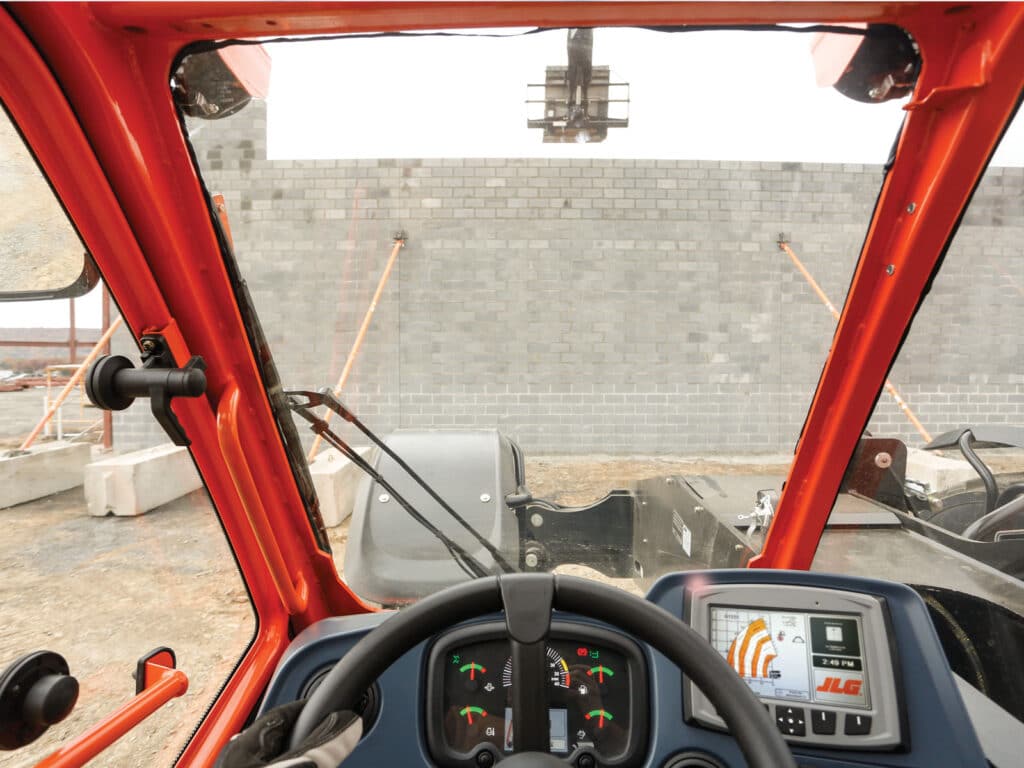

- Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
- Increased versatility—wide range of attachment options
Specifications
- Speed - Maximum Lower: 13 sec.
- Axle-Front: High Bias, Limited Slip
- Axle-Rear: Planetary
- Machine Height: 8 ft 4 in. / 2.54 m
- Operating Vehicle Weight: 33960 lb / 15404 kg
- Engine Model: QSF3.8L Tier 4 Final
- Outriggers Up Max Forward Reach: 42 ft / 12.8 m
- Wheelbase: 11 ft 6 in. / 3.49 m
- Lift Capacity at Max Reach: 3500 lb / 1587.57 kg
- Lift Capacity at Full Height: 5000 lb / 2267.96 kg
- Machine Length: 20 ft 1 in. / 6.12 m
- Speed - Maximum Travel: 20 mph / 32.19 km/h
- Ground Clearance: 1 ft 6 in. / 0.46 m
- Engine Horsepower: 130 hp / 96.98 kW
- Engine Manufacturer: Cummins
- Transmission - Nr Forward Gears Standard: 4
- Load Center: 2 ft / 0.61 m
- Capacity - Fuel Tank: 38.3 gal. / 144.98 L
- Maximum Engine RPM: 1500 rpm
- Frame Leveling: 10 Degrees
- Speed - Maximum Lift: 16 sec.
- Drawbar Pull: 25400 lb / 11521.25 kg
- Transmission - Nr Reverse Gears: 3
- Speed - Maximum Telescope In: 15 sec.
- Maximum Lift Height: 55 ft / 16.76 m
- Transmission Type: Powershift
- Tire Size: 400/75-28
- Maximum Lift Capacity: 12000 lb / 5443.11 kg
- Speed - Maximum Telescope Out: 18 sec.
- Machine Width: 8 ft 5 in. / 2.56 m
- Outside Turning Radius: 14 ft / 4.27 m

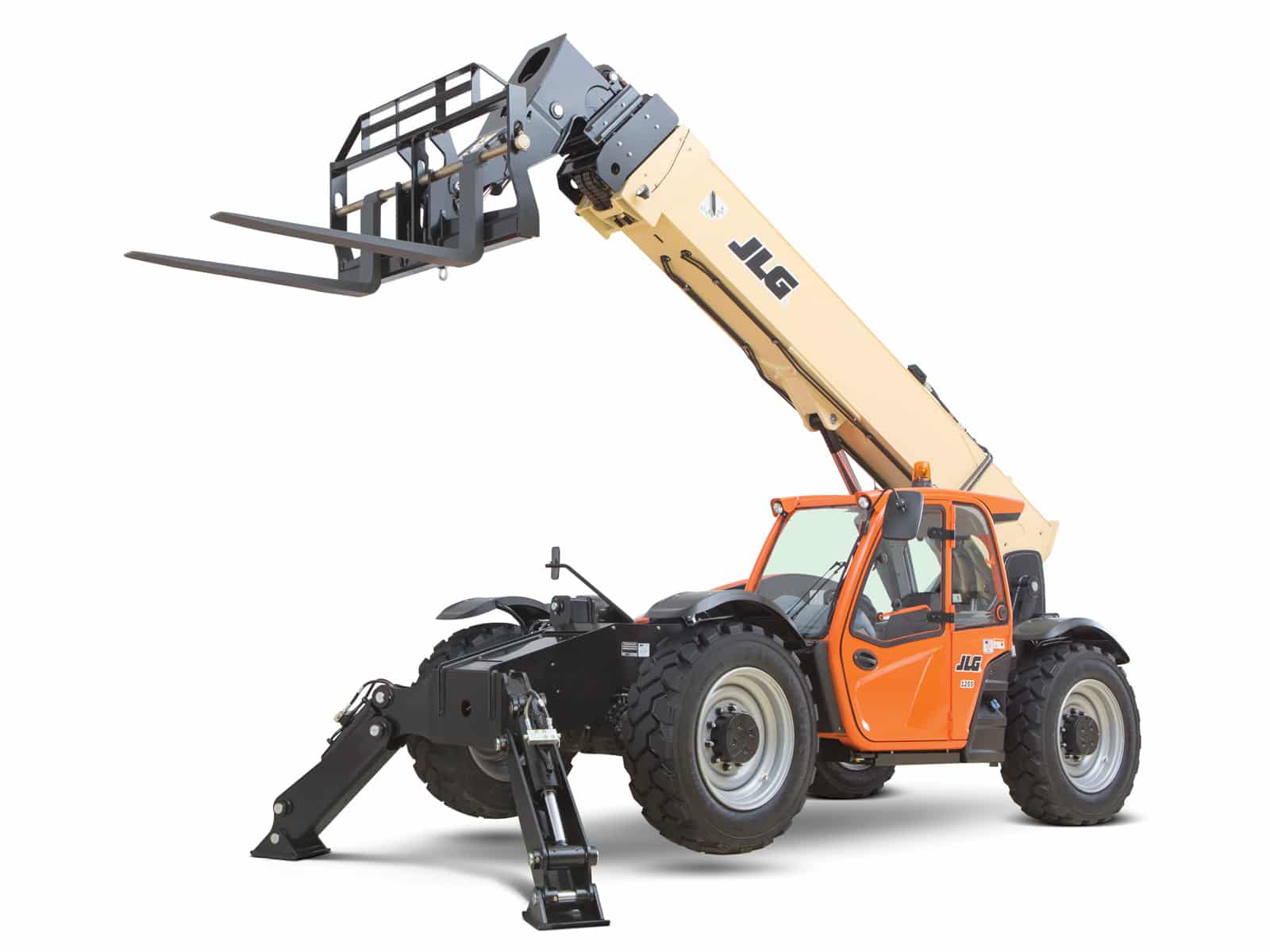

- Outriggers or Stabilizers: Yes
- Function Pump Type: Load Sensing Dual Gear
Features
- Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
- Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
- Increased versatility—wide range of attachment options
- Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
