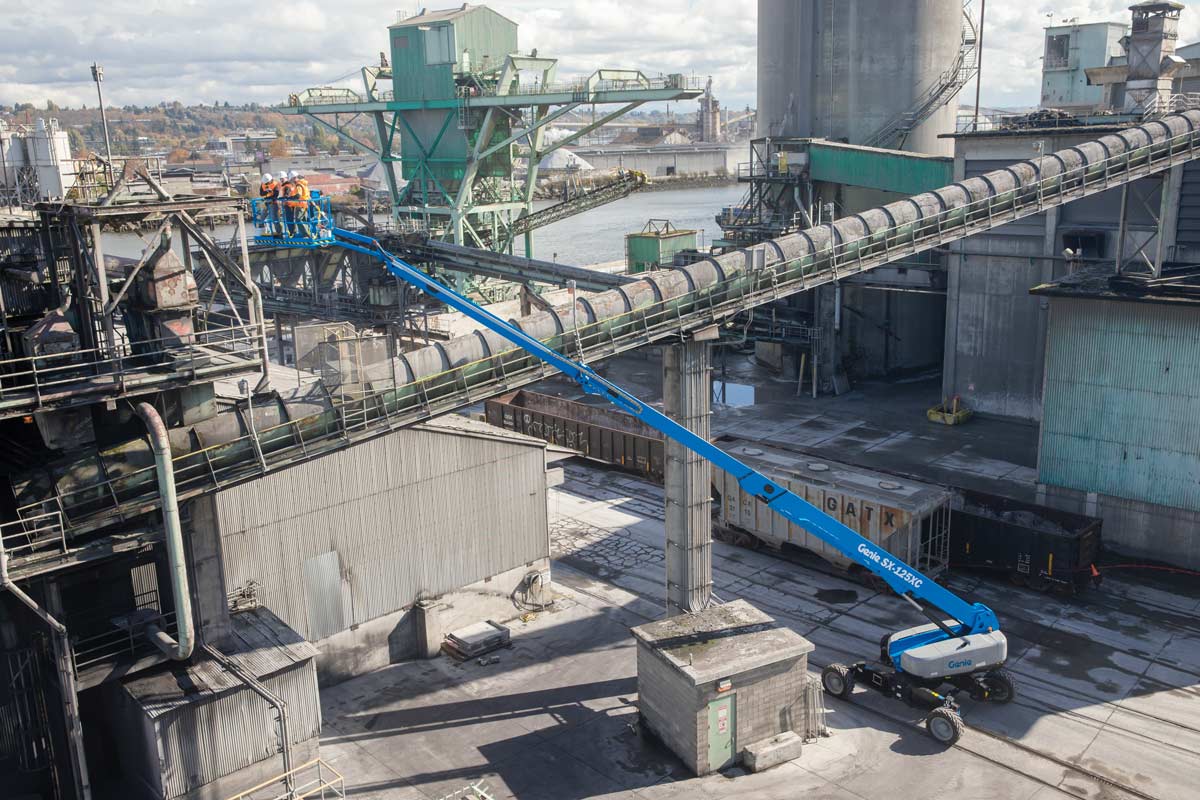

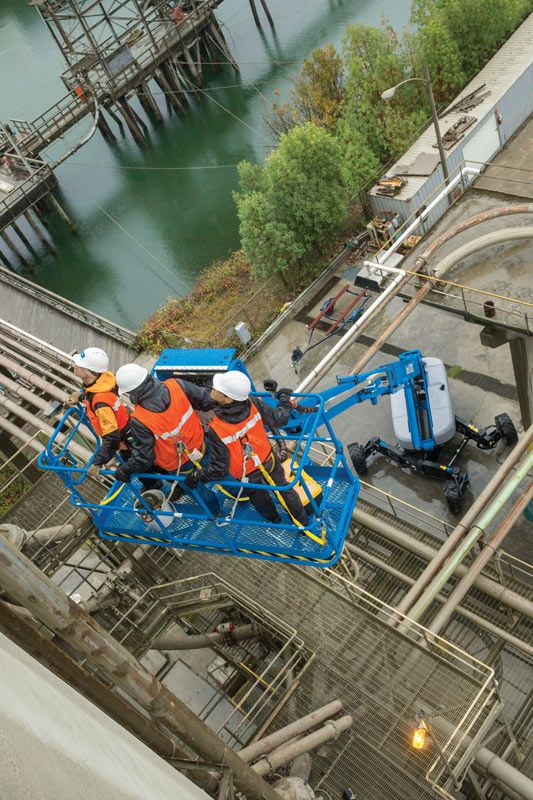

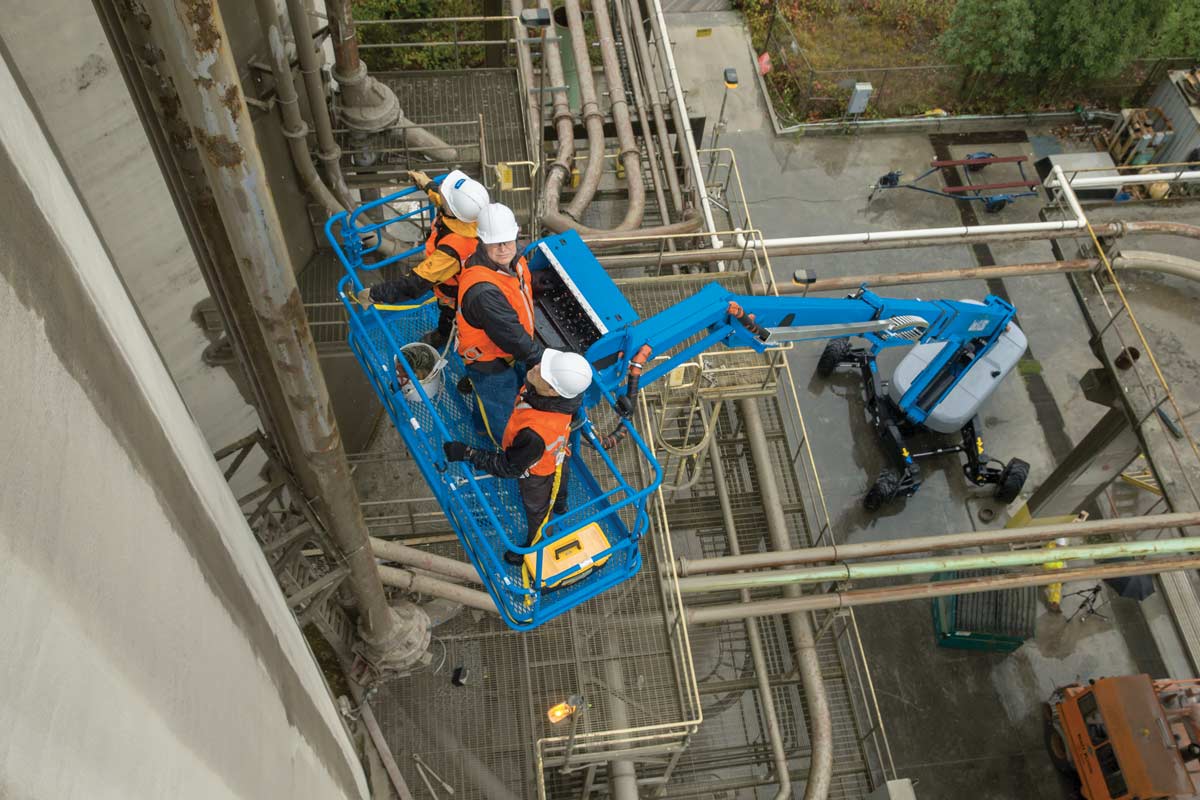

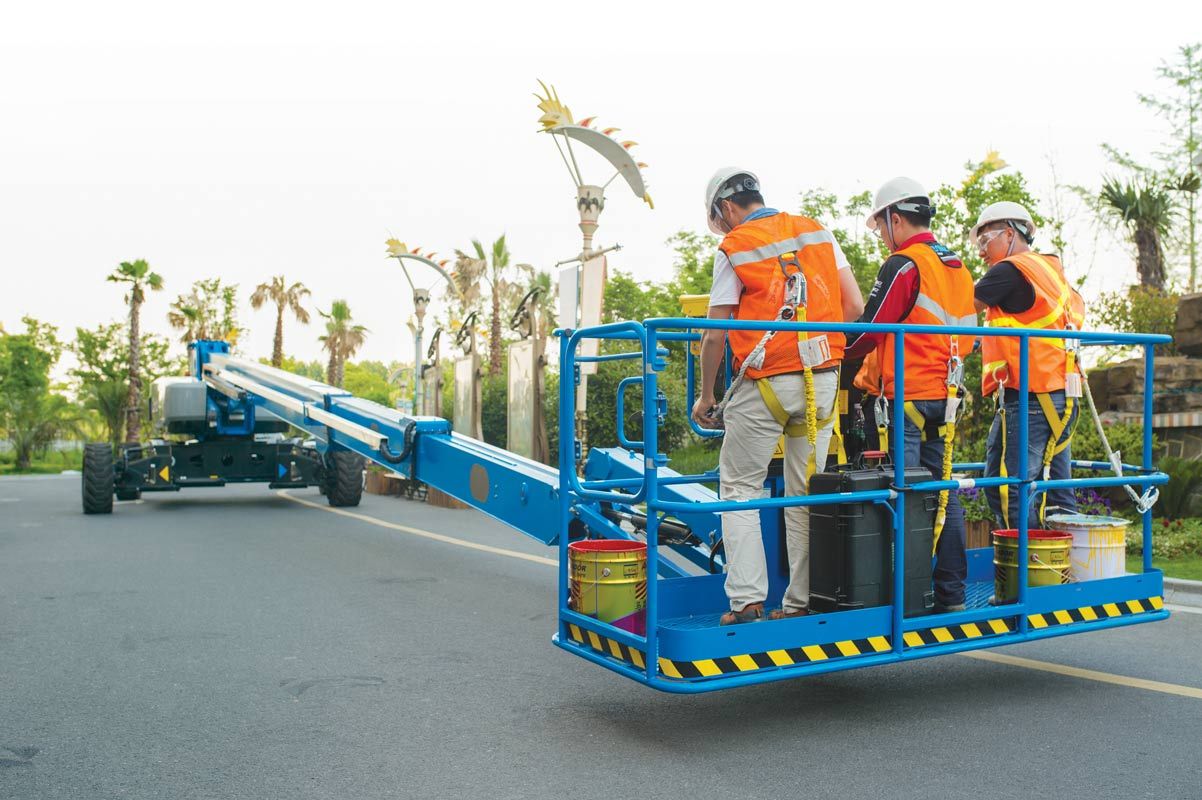

Perfect for heavy lifting in construction, bridge inspections and maintenance, stadium and sports arena, oil and gas, industrial, telecommunications and utility applications, the Genie® SX-125 XC™ telescopic boom works in more applications that require higher capacities thanks to its industry-leading dual lift capacity — 660-lb (300 kg)/1,000-lb (454 kg)**.
Overview
- Smooth range of motion envelope — no more saw tooth
- Mini Genie XChassis™ design for compact transportation and work in confined areas
- Load sense technology for accurate load weighing and zero-load field calibration
- Extended reach out and down capability with 8 ft 1 in (2.69 m) of reach below grade
** Maximum outreach zone / maximum capacity zone.
Specifications
- Machine Width and Length: 12 ft 11 in / 46 ft 9 | 3.94 m / 14.25 m
- Below Ground Reach: 8 ft 10 in | 2.69 m
- Max Horizontal Reach: 80 ft | 24.38 m
- Platform Capacity: 660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
- Max Working Height: 131 ft | 40.1 m
Additional Information
Options
Engine Options
- Diesel intake air pre-cleaner
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, and hydraulic tank heater
Lift/Turntable Options
- Hostile environment kit: Cylinder bellows, boom wiper seals, air pre-cleaner, and ring gear guard
Platforms
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Welder – Select Lincoln or Miller
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
