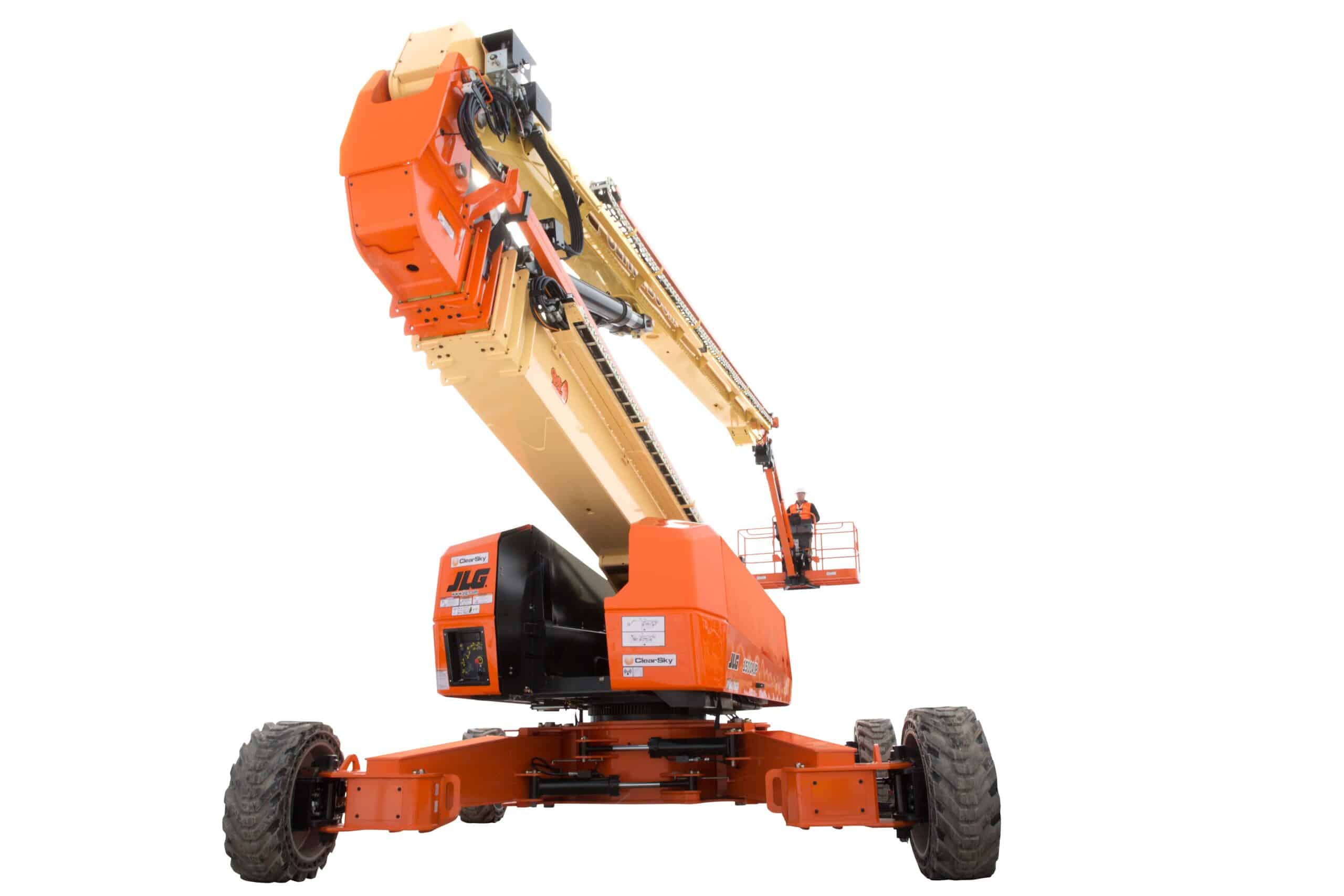

Key Specs
- Platform Height: 150 ft / 45.72 m
- Platform Capacity – Restricted: 1000 lb / 453.59 kg
- Platform Capacity – Unrestricted: 600 lb / 272.16 kg
Key Features
- Jib pivots vertically and horizontally for better access to elevated work sites.
- Lift more with class leading capacity
- Fast lift speeds – spend more time working, less time positioning
- No oversized load permit needed (over weight permit is required for highway transportation)
- Now available with the ClearSky™ telematics platform, so you can easily manage and maintain your fleet. Contact your JLG® sales representative for details.
Specifications
- Gradeability - 4WD: 40 %
- Machine Height: 10 ft 2 in. / 3.1 m
- Horizontal Jib Rotation: 125 Degrees
- Auxiliary Power: 12 Volts DC
- Drive Speed - 4WD: 2.8 mph / 4.51 km/h
- Maximum Ground Bearing Pressure: 120 psi / 8.40 Kg/cm2
- Tailswing: 2 ft 5 in. / 0.74 m
- Swing: 360 Degrees
- Working Height: 156 ft / 47.55 m
- Swing Type: Continuous
- Platform Capacity - Unrestricted: 600 lb / 272.16 kg
- Platform Dimension A: 3 ft / 0.91 m
- Turning Radius - Outside (axles extended): 21 ft 8 in. / 6.6 m
- Overall Width (Axles Extended): 16 ft 6 in. / 5.03 m
- Jib - Range of articulation: 130 Degrees
- Platform Capacity - Restricted: 1000 lb / 453.59 kg

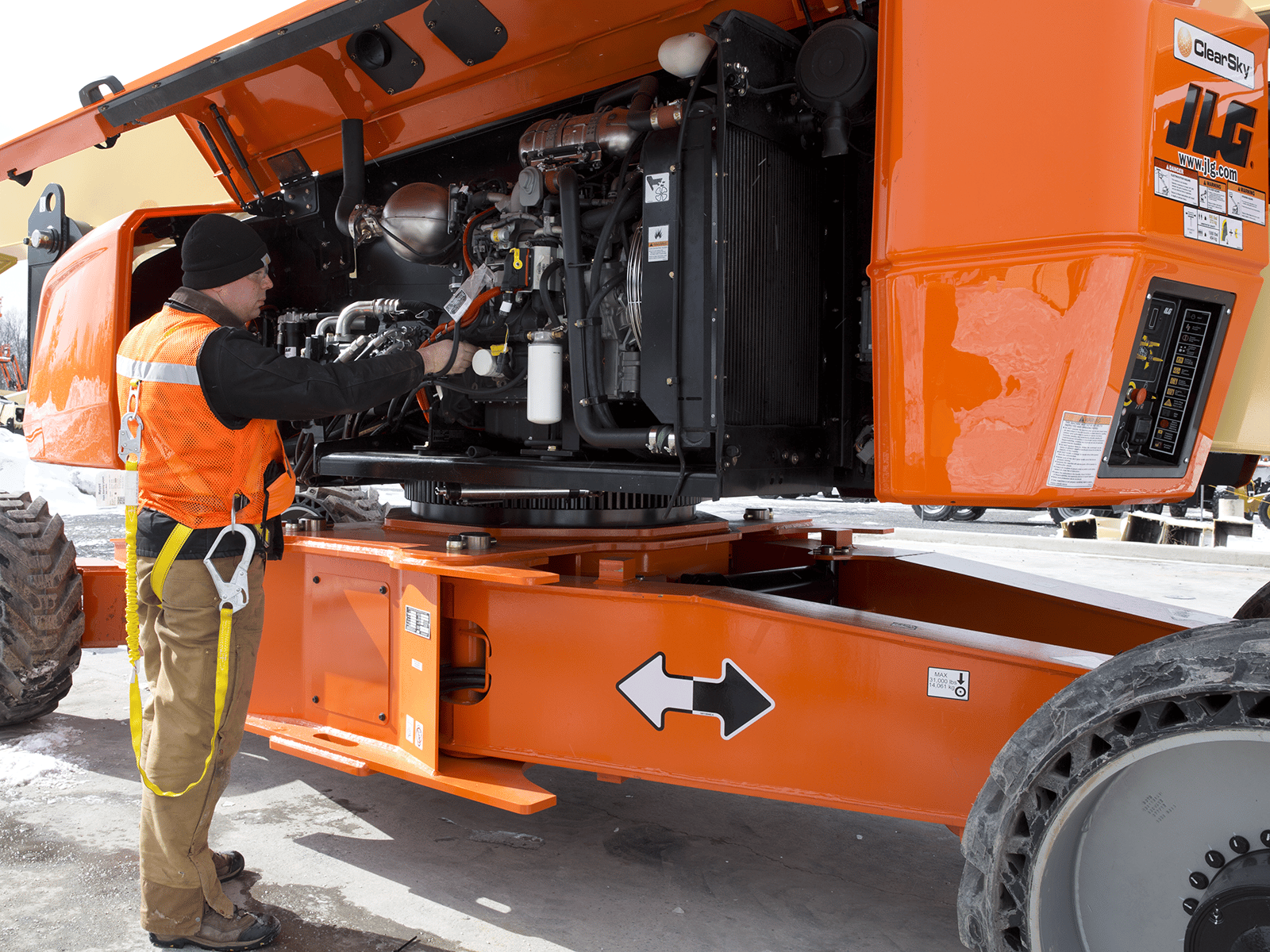

- Engine Type - Diesel (LRC): Deutz TCD 3.6 T4F 99.8 Hp
- Ground Clearance: 1 ft / 0.3 m
- Capacity - Hydraulic Reservoir: 93 gal. / 352.04 L
- Machine Weight (ANSI Export and CSA): 57400 lb / 26036.20 kg
- Machine Width: 8 ft 2 in. / 2.48 m
- Up and Over Height: 60 ft / 18.29 m
- Platform Height: 150 ft / 45.72 m
- Transport Length: 39 ft 8 in. / 12.09 m
- Turning Radius - Outside (axles retracted): 31 ft 3 in. / 9.53 m
- Platform Dimension B: 8 ft / 2.44 m
- Tire Size: 445/50D710 24 Ply FF
- Capacity - Fuel Tank: 45 gal. / 170.34 L
Features
- No oversized load permit needed (over weight permit is required for highway transportation)
- Fast lift speeds - spend more time working, less time positioning
- Now available with the ClearSky™ telematics platform, so you can easily manage and maintain your fleet. Contact your JLG® sales representative for details.
- Jib pivots vertically and horizontally for better access to elevated work sites.
- Lift more with class leading capacity
