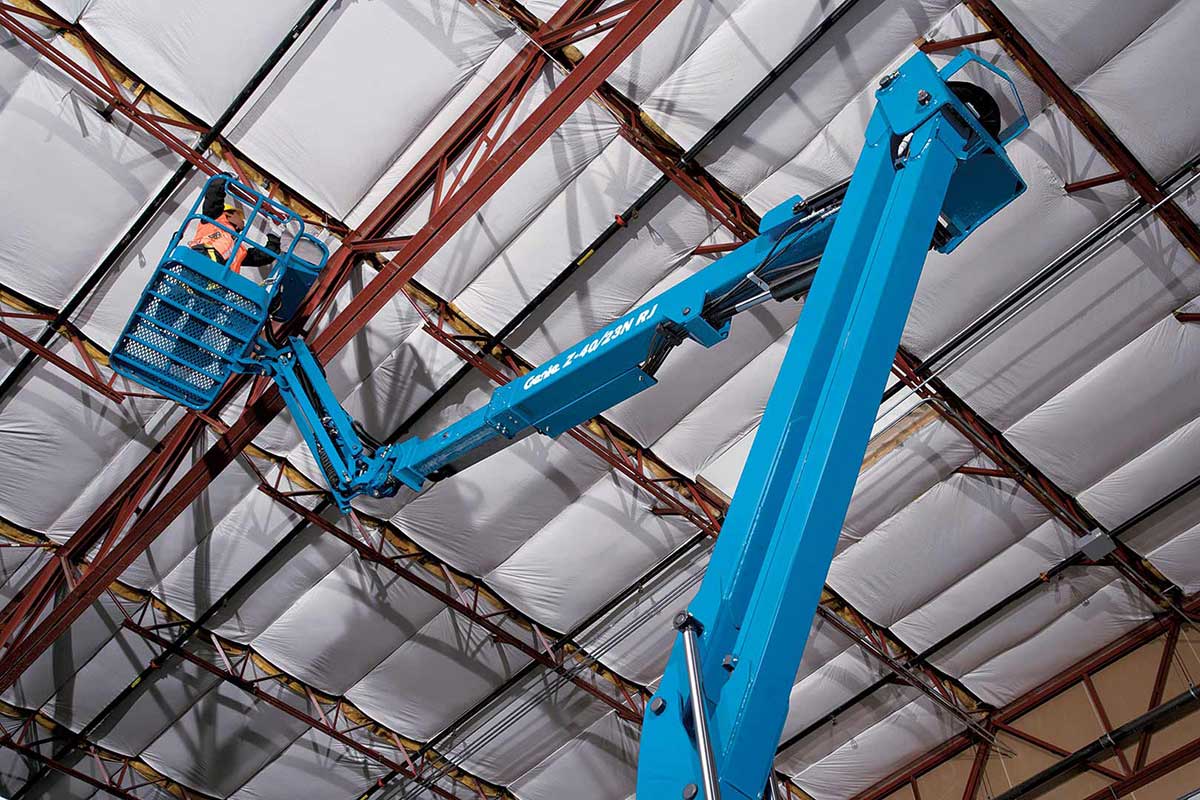

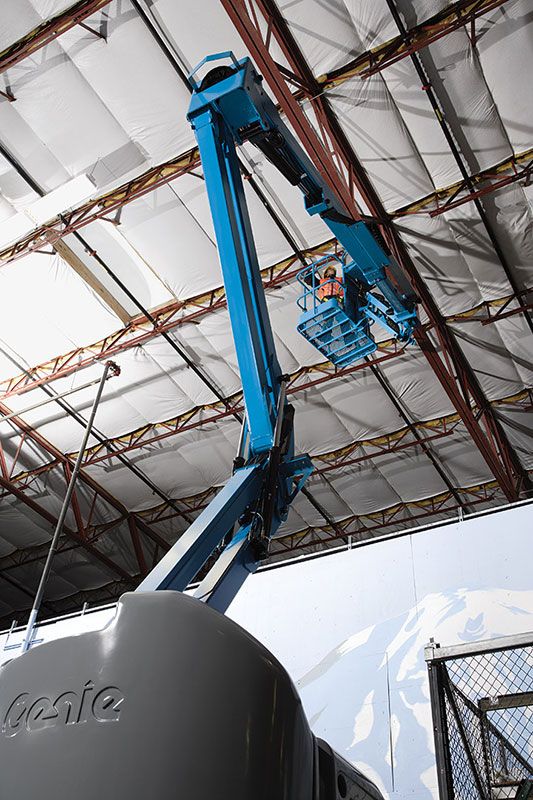

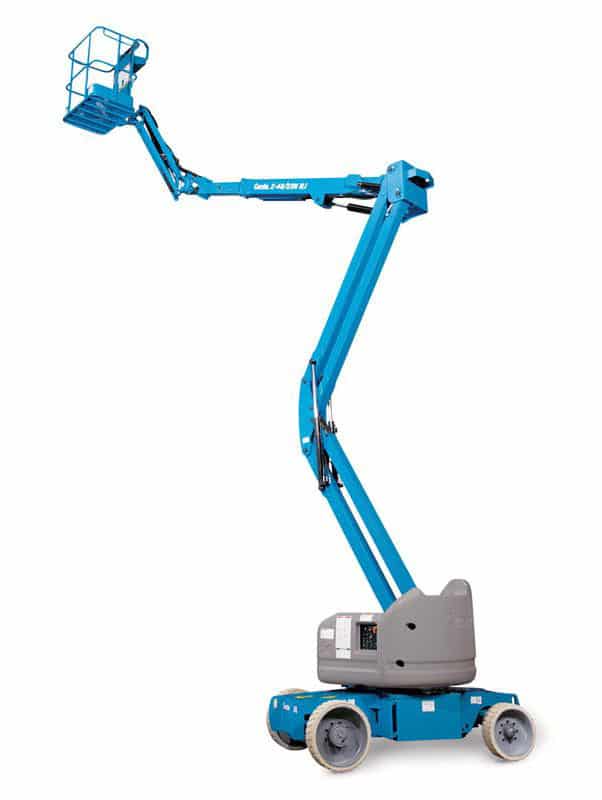

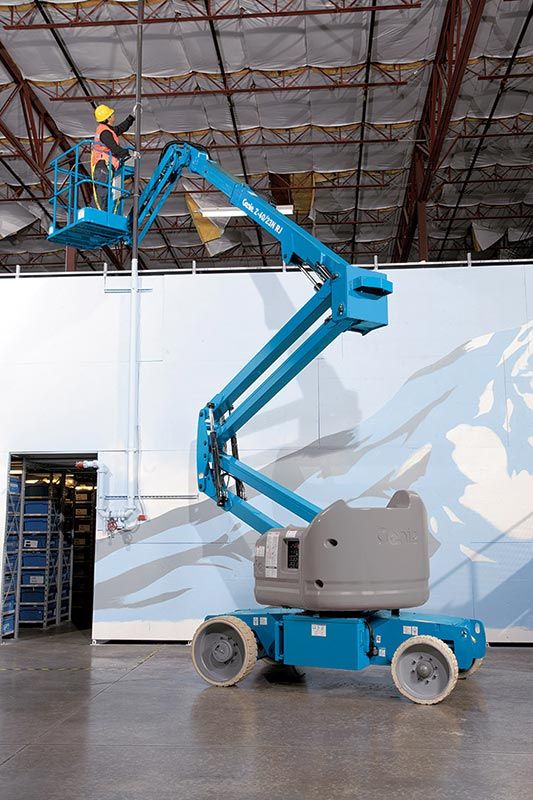

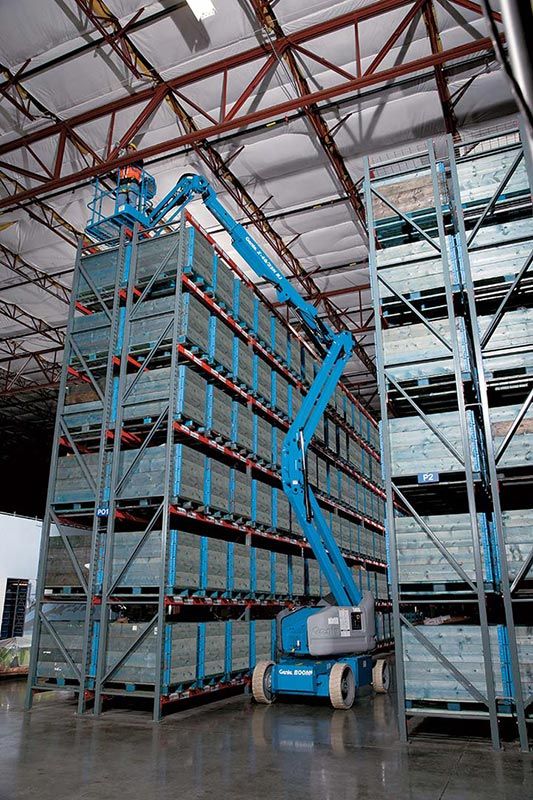

Narrow, compact and equipped with the latest generation of eco-friendly AC drive systems, the Genie® Z™-40/23 N RJ electric articulating boom lift is a quiet, emission-free, cost-efficient solution ideal for sensitive, congested and urban work environments. It features a rotating jib offering industry-leading horizontal rotation as well as the standard vertical reach for increased jobsite versatility.
Overview
• Minimal tailswing, tight turning radius and compact dimensions for easy manoeuvring in confined jobsites
• Compact chassis for narrow aisle access
• 30% gradeability and 7.2 km/h (4.5 mph) travel speed for excellent drive performance
• AC drive system for enhanced driving performance and simplified maintenance
• 1.22 m (4 ft) articulating jib with a 128° vertical rotation and a 180° horizontal rotation for increased versatility
• 180° hydraulic platform rotation and self-leveling platform for easy operation
Specifications
- Max Horizontal Reach: 22 ft 8 in | 6.91 m
- Platform Capacity: 500 lb | 227 kg
- Max Up and Over Clearance (riser extended): 21 ft 3 in | 6.48 m
- Max Working Height: 46 ft 5 in | 14.32 m
