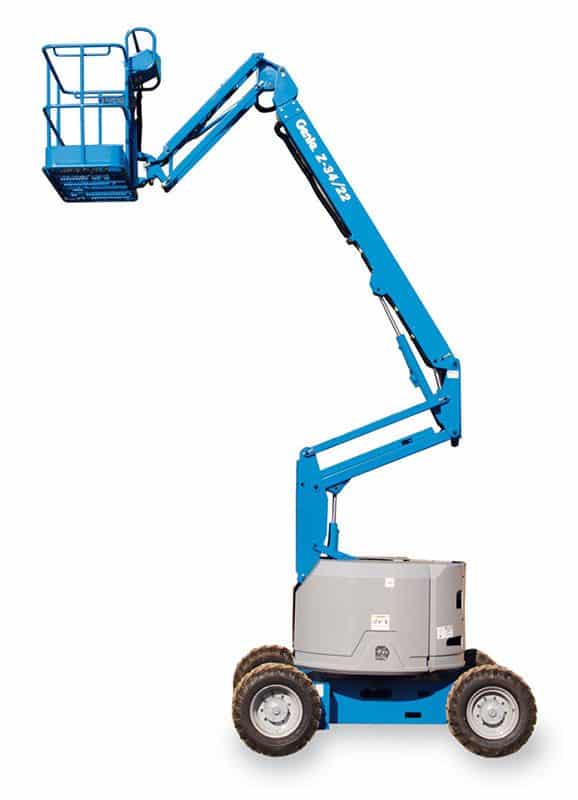

Ideal for outdoor construction and industrial applications, the engine-powered Genie® Z®-34/22 IC articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none.
Overview
- Zero tailswing and nose swing in all positions allow excellent manoeuvrability in confined areas
- Two speed hydraulic motors drive and efficient power transmission for optimum speed and torque on rough terrain
- 4WD and up to 45% gradeability for superior terrainability
- Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
- 4 ft (1.22 m) articulating jib with a 139° vertical rotation and 180° hydraulic platform rotation to accurately position workers
Specifications
- Platform Capacity: 500 lb | 227 kg
- Max Up and Over Clearance (riser extended): Z-34/22 IC: 15 ft 1 in | Z-34/22 IC: 4.6 m
- Max Horizontal Reach: 22 ft 3 in | 6.78 m
- Max Working Height: Z-34/22 IC: 40 ft 10 in | Z-34/22 IC: 12.62 m
Additional Information
Options
Tire Options
- 4WD Rough-terrain foam-filled tires (water based)
- Tire sealant: air-filled tires only
Engine Options
- 28 hp GM, gas / LPG Dual Fuel, including gauge package
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater
- Engine gauge package, Kubota: oil pressure, temperature and voltage
Lift/Turntable Options
- AC generator, 110V/60Hz or 220V/50Hz, 2200W, hydraulically driven
- Specialty hydraulic oil (22 gal – cold weather, fire resistant, or biodegradable)
- LPG tank, 33.5 lb. capacity: GM gas/LPG engine only
- Hostile environment kit: cylinder bellows, boom wiper seals and platform control box cover
Platforms
- 4 ft. platform
- 4ft. or 4 ft. 8 in. platform with ½ height mesh inserts and swing gate
Platform Options
- Aircraft protection kit : 4ft. 8in. platform foam padding and padded disable system
- Entry toe boards
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Platform auxiliary top rail
- Platform swing gate
