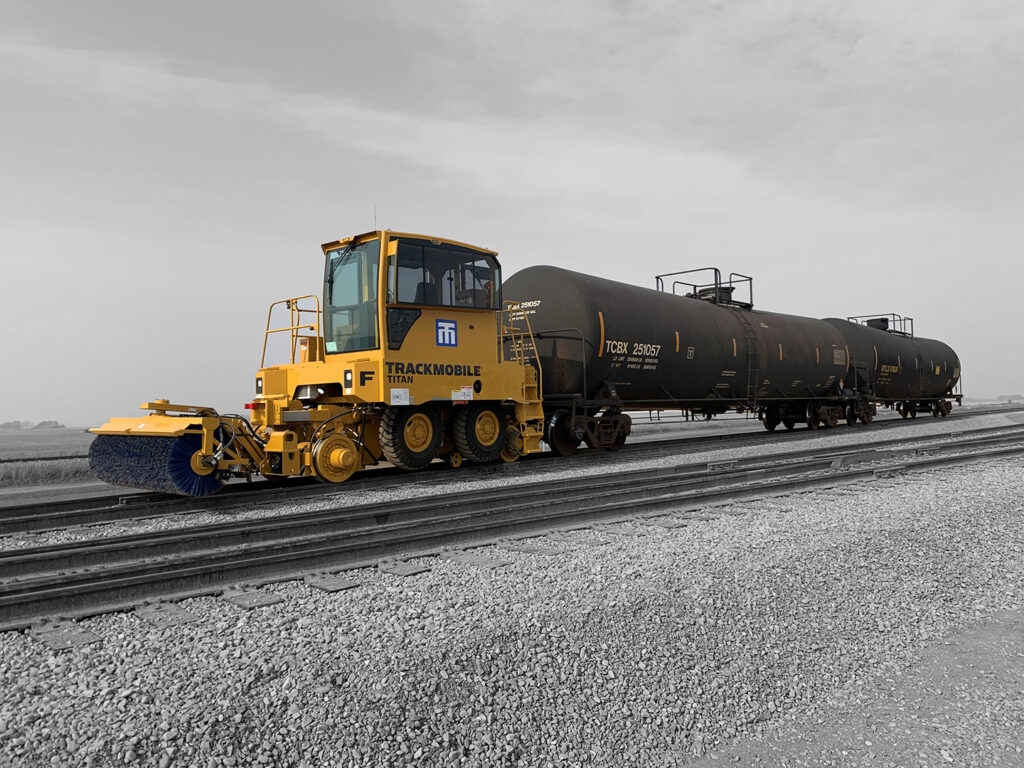

The Titan is Trackmobile’s most popular model since its introduction in 2006. Designed for rugged and higher duty cycle applications, the Titan is engineered to conquer even the most severe rail conditions and for optimal operator comfort.
Specifications
- Rail Gauge : Standard Gauge: 56 1/2" [1435 mm] (NOTE: Additional Rail Gauges Available as an Option)
- Maximum Tractive Effort (Single Coupled): 33,100 lbs. [15,014 kg]
- Air Intake System : 2-stage Filteration, Primary Filter, Safety Filter
- Frame: Heavy-Duty 2" [51 mm] Thick Welded Frame
- Road Wheels : 20-ply, 12.00 x 20 Heavy-Duty, Mine Service Rubber Tires
- Rail Wheels : 27" [686 mm] Heat-Treated Cast Steel. (AAR Specification)
- Transfer Case : Heavy-Duty, Hardened Alloy Steel Spur Gears. Oil Bath Lubrication
- Train Air Brakes : 100 CFM Transmission P.T.O. Driven Compressor
- Road Wheel Drive : Interlocking Lug Drive
- Electrical System : 12-Volt DC, 160 Amp Alternator, 925 CCA Dual Batteries
- Sanders: Eight Individual, Air-Operated, Electrically-Controlled Sanders
- Power Steering : Hydraulic Steering System, Pivoting Steering Wheel
- Maximum Tractive Effort (Double Coupled): 49,500 lbs. [22,453 kg]
- Transmission / Torque Converter : Funk DF Series, Four Speed Forward and Reverse
- Rail & Road Brakes : Hydraulic-Actuated Disc Brakes
- Hydraulic System : Constant Pressure Hydraulic System, with Piston Pump
- Engine: Cummins QSB-6.7 Liter, Turbo-Charged Diesel Engine, 6 Cylinder, 4 Cycle
- Parking Brake : Spring Applied, Air-Released, Disc/Caliper
- Couplers: Various Coupler Styles Available
- Rail Drive Axles : Two Axletech Model PRLC, Planetary Type
Features
- Optimized cab size
- Air Ride suspension
- Pivoting main frame
- 6 cylinder engine sized for optimal performance
- 100 cfm air compressor
