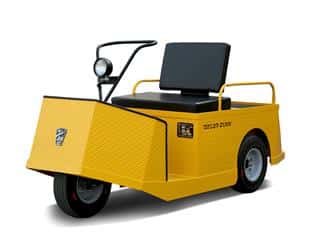

The versatile design of the SS-536 allows users to convert the vehicle from personnel carrier to burden carrier in a matter of seconds. This vehicle can carry up to two people or 600 lbs. of load on the job site.
With its three wheel short turning radius design, The SS-536 can maneuver dependably around warehouses, industrial complexes, resorts, hotels, shopping malls, hospitals and other commercial complexes.
Its all welded steel unitized body and frame is built to last for years of use. Modularized control system design provides ease of maintenance on all electrical systems. Tiller loop steering, 10 mph speed, and on-board charger provide safety, efficiency and convenience during daily operation.
Specifications
- Performance: Passengers: 2
- Chassis: Tires: Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic
- Dimensions: Deck: Width: 30" (76.2cm) Length: 19" (48.3cm) Height: 24" (60.96cm)
- Dimensions: Outside Turning Radius: 75" (190.5cm)
- Interior: Seats: Driver: Passenger:
- Dimensions: Wheel Base: 53.5" (135.9cm)
- Dimensions: Weight: 701 lbs. (309 kg.)
- Dimensions: Hitch Height: N/A
- Chassis: Suspension: Rear: Coil springs Front: Coil springs
- Chassis: Steering: Manual, Tiller, Front Fork
- Chassis: Brakes: Rear: mechanical drum Front: N/A Parking: Foot
- Performance: Load Capacity: 600 lbs. (272 kg.)
- Dimensions: Width: 30" (76 cm)
- Chassis: Powertrain: Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Reduction Drive: Controller: Series
- Chassis: Frame Construction: Steel unitized body, heavy duty 16 gauge diamond plate
- Performance: Speed: 9 mph (14.4 km/h)
- Dimensions: Height: Less Cab: 41.5" (105 cm) With Cab: N/A
- Performance: Range: 20 miles (32 km)
- Chassis: Battery: Type: Four 210 amp hr., 6 volt (lead acid) System Voltage: 24 Charger: Built-In
- Performance: Tow Capacity: 2,000 lbs. (909 kg)
- Dimensions: Length: 86.5" (219 cm)
- Interior: Instrumentation: Battery discharge indicator, forward/reverse selector, key switch, electric horn, DC/DC Converter
