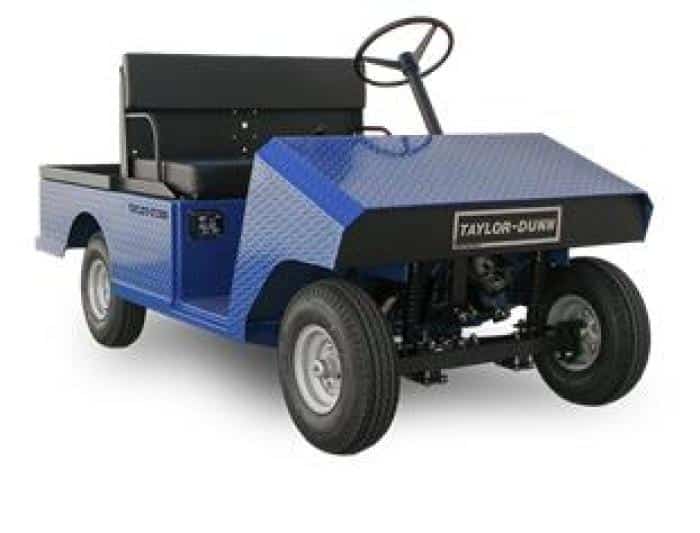

The R-380 48V GT is equipped with a 48 volt GT drive train that provides speeds up to 15 mph. Equipped standard with automatic charger, solid state speed controller, safety seat switch and 8.8 hp DC motor, the R-380 48V GT is the best value in its class of vehicles.
Configured with fold down 4 passenger seating, the R-380 can be used as a personnel or burden carrier during daily operations. Equipped with factory-installed steel cabin and doors, this vehicle ideal for both indoor and outdoor applications.
Specifications
- Chassis: Steering: Manual, Re-circulating Ball
- Interior: Seats: Driver: Passenger:
- Performance: Load Capacity: 1,150 lbs. (522 KG)
- Dimensions: Weight: 1,446 lbs (656 kG)
- Dimensions: Outside Turning Radius: 112" (284.3cm)
- Chassis: Suspension: Rear: Leaf springs Front: Leaf springs
- Chassis: Powertrain: Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: SEM
- Dimensions: Deck: Width: 41.5" (105.4cm) Length: 32" (81.3cm) Height: 25" (63.5cm)
- Dimensions: Length: 99.5" (352 cm)
- Chassis: Battery: Type: Eight, 6V, 217 amp hour (lead acid) System Voltage: 48 Charger: Built-In
- Interior: Instrumentation: Smart View Display (Battery status indicator, hour meter, system status monitor), reverse buzzer, forward/reverse selector, key switch, electric horn, DC/DC Converter
- Chassis: Brakes: Rear: Hydraulic disc brakes Front: Hydraulic disc Parking: Hand
- Dimensions: Hitch Height: 13" (33.0cm)
- Chassis: Tires: Rear: 5.70 x 8 pneumatic Front: 5.70 x 8 Load Range C, Pneumatic
- Dimensions: Wheel Base: 63.5" (161.3cm)
- Chassis: Frame Construction: Steel unitized body, heavy duty 16 gauge diamond plate
- Performance: Speed: 15 mph (24.1 km/h)
- Dimensions: Height: Less Cab: 45.5" (115 cm) With Cab: 69" (175 cm)
- Performance: Range: 35 miles (56 km)
- Dimensions: Width: 44" (112 cm)
- Performance: Passengers: 2
- Performance: Tow Capacity: 5,000 lbs. (2,273 kg)
