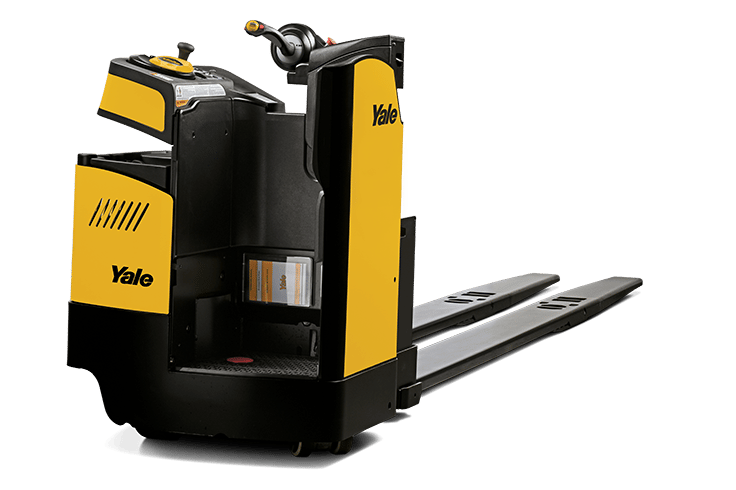

With the highest load capacity and longest fork length available in the industry, the MPR080-100VG enclosed end rider was designed to move more product − more efficiently. Engineered to help increase productivity in demanding, high-cycle applications and multi-shift operations. Factor in advanced ergonomics and simplified, quick maintenance and this pallet truck is in a league of its own.
Specifications
- capacity: 8000-10000lbs
- models: MPR080-MPR100VG
- load_weight: 10000lbs
- max_lift_height: 9.3
Features
- Low cost of operation
- Unmatched performance
- Advanced ergonomics
Additional Information
Low cost of operation
Engineered for the long haul with durable components and simplified service which can be carried out with minimal downtime.
- Durable components – dual caster wheel assembly, heavy duty fork frame, larger drive tires, tandem load wheels and AC traction motor were built for easy service and long-lasting performance.
- Easy access to major components – The traction controller, drive motor, hydraulic power unit can be accessed through the service door which is easily opened/closed via a quick release latch inside the operator compartment.
Advanced ergonomics
Specifically designed with advanced ergonomic features to help give operators the comfort and confidence they need in the most demanding, high-cycle and multi-shift applications.
- Offset master drive unit (MDU) – offers more usable floor space than a typical center-mounted model found on leading competitive trucks; allowing the operator to stand comfortably in a true side stance position.
- Suspended floor system – engineered to rest on four (4) rubber isolators bolted to the drive frame to help reduce shock and vibration transmitted to the operator’s feet, back and legs.

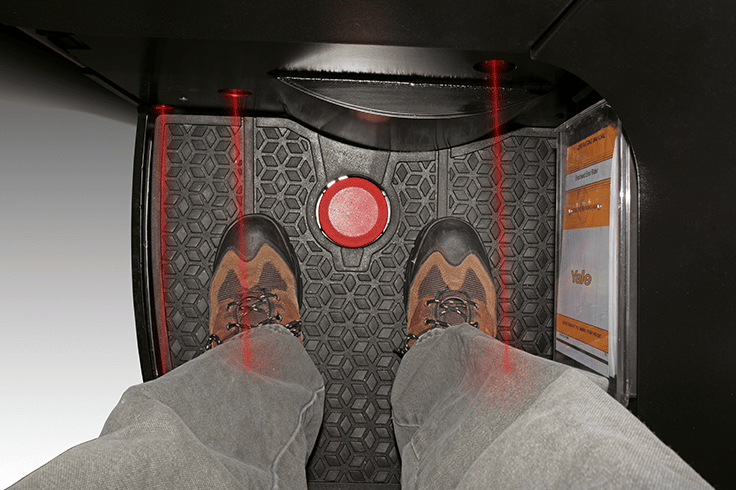

- Yale® Smart Operator Sensing System – the industry-exclusive, pedal-free design allows operators the freedom to adjust their stance and find a comfortable operating posture.
Unmatched performance
Engineered for productivity and exceptional maneuverability mean you can pack more pallets into every trip and spend less time navigating tight spaces.
- Industry-leading load capacity – move up to 25% more product in one cycle than leading competitors with a heavy-duty, 10,000-pound load capacity.
- 192-inch fork length – boost throughput by up to 20% by transporting up to five single-stacked or 10 double-stacked pallets with industry’s longest forks.
- Excellent maneuverability – a tight turning radius, electric power steering and smartly positioned undercarriage components allow the operator to maneuver in tight spaces and across dock plates with confidence.
- Four-point chassis – the drive tire, load-bearing dual caster wheel and two load wheels create a four-point stance to help improve load weight distribution and maximize truck stability.
