Whether your material handling jobs include unloading or loading trailers, dockside maneuvering, or stocking, the Hyster walkie counterbalanced stacker line of motorized pallet trucks gives you big capacity and productivity with the operational cost of a walkie rather than a rider.

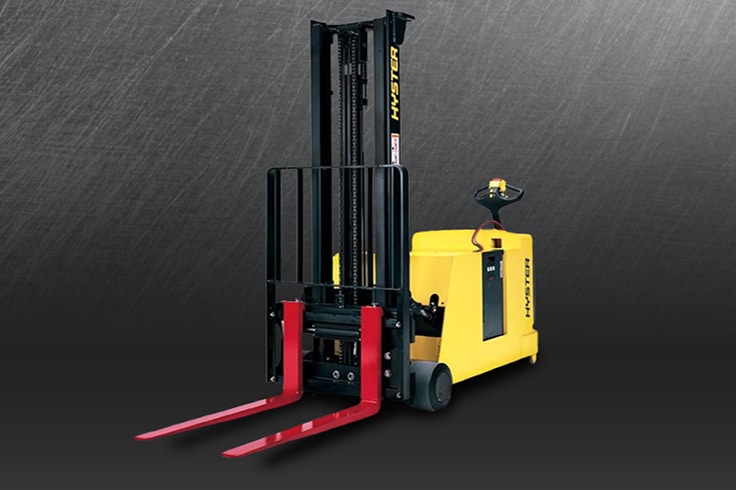

Hyster W25-40ZC

Whether your material handling jobs include unloading or loading trailers, dockside maneuvering, or stocking, the Hyster walkie counterbalanced stacker line of motorized pallet trucks gives you big capacity and productivity with the operational cost of a walkie rather than a rider.

Need pricing or more information on this unit?

Whether it is the new or used piece of equipment that has caught your eye we want to help you find the purchasing option that best meets your needs and budget.

Specifications

  • capacity: 2500-4000lbs
  • models: W25-40ZC
  • load_weight: 4000lbs
  • max_lift_height: 126

Features

  • Enhanced productivity
  • Performance options
  • Low cost of operation
  • Decreased downtime

Additional Information

Decreased downtime

Complexity and accessibility can turn unscheduled downtime into a service nightmare and cost more than you bargained – not a problem with the ZC series.

  • Optional multi-function display provides performance-at-a-glance of the battery state-of-charge with four high-intensity LED lights. The display also shows the truck hours, fault code indication and lift interrupt warning.
  • Truck diagnostic information can be read using a hand-held programming tool (optional) or by checking the status of the LED indicator mounted on the controller. All wiring is tagged for quick, easy circuit tracing.
  • Optional battery rollers and easily removed side gates are available to help maximize your uptime and facilitate fast, easy battery change-outs.

Low cost of operation

The W25-40ZC Counterbalance series is designed to improve your space utilization and productivity while driving down your cost of operations.

  • Enjoy rock-solid stability whether you’re cornering, traveling, lifting or lowering, or traveling over rough floors and dock plates.
  • 2-stage Limited Free-Lift (LFL) or 3-stage Full FreeLift (FFL) mast configurations let you reach the fourth shelf height position at 14 feet and above.
  • Serial communications and solid-state switches with soldered wire connections increase reliability and uptime and reduce maintenance costs.
  • Enjoy energy savings of adjustable plugging and the Auto Deceleration System along with a significant increase in traction motor brush life.

Enhanced productivity

The Hyster Walkie Stacker product line gives you a significant capacity for work cycles handling palletized loads at the operational cost of a Walkie rather than a Rider truck.

  • Metal Oxide Semiconductor Field Effect Transistor (MOSFET) traction controller and Separately Excited Motor (SEM provide enhanced battery shift life and improved acceleration with higher top-end travels speeds when loaded.
  • Bottom-mounted steering control handle’s ergonomic, easy-to-operate, fingertip control of proportional lift/lower, travel speed and direction, and an optional sideshift make load handling easier and more precise, increasing your productivity.
  • Creep or “turtle” speed button allows you to maneuver the ZC Counterbalance Stacker series in and out of tight areas.

Performance options

Three operator-selectable performance modes allow you to choose between three preset user configurations that affect acceleration, deceleration (neutral braking), and top travel speed. Now, customizing your Hyster Walkie Stacker product line’s performance to your application is easier than ever.

MODE 1: Economy Mode (battery saver) Soft acceleration; reduced top travel speed with the Auto Deceleration adjusted to a high level.
MODE 2: Performance with Auto Deceleration Medium acceleration; reduced top travel speed with the Auto Deceleration adjusted to a high level.
MODE 3: Performance with Minimum Auto Deceleration High acceleration; high top travel speed with the Auto Deceleration adjusted to the minimum level.
