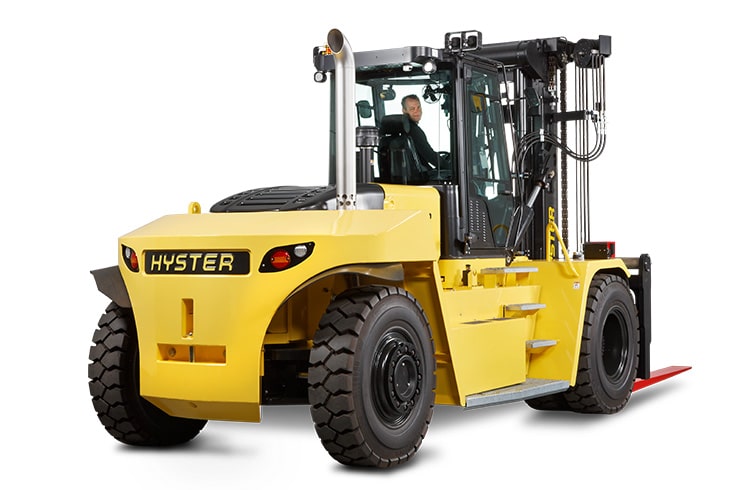

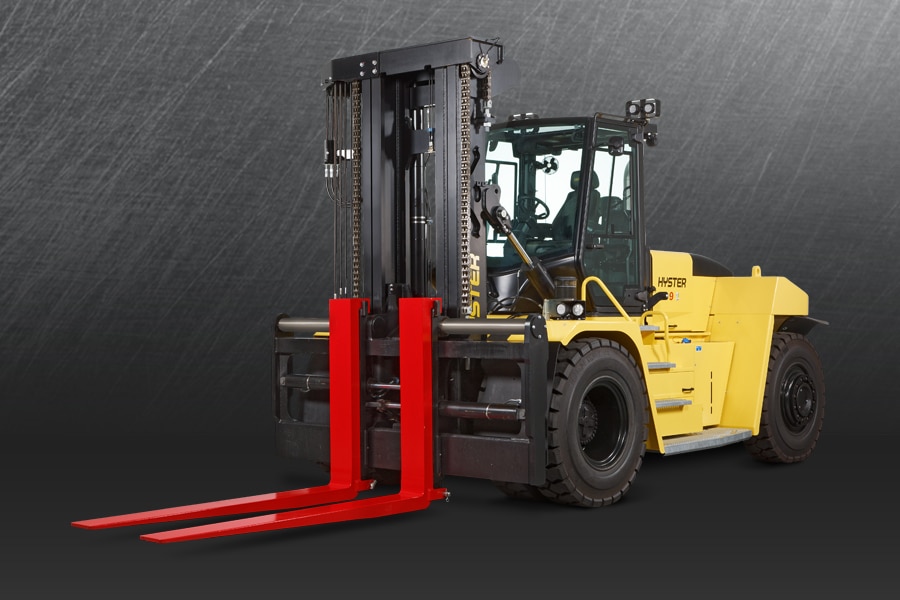

Make Hyster
Model H400-450XD
Type High Capacity
Depend on the power of Hyster® heavy-duty forklifts
Robust design

The mast, with robust mast channels, rollers, stub shafts and chain anchors, is designed to excel in heavy duty applications. The sturdy mast design for this truck series enables less mast deflections while offering a number of 2-stage mast options for a wide variety of applications in multiple industries.

Greaseable load rollers with roller bearings can provide years of dependable performance in the front end. Carriages are designed to have minimal capacity derate on sideshifting carriages, enabling the truck to provide close to full rated capacity under all operating conditions.

Available in short wheel base to deliver an optimum combination of compactness, nimbleness and agility for applications with space constraints requiring a tighter turning radius.

Operator comfort

The ergonomically designed high visibility cab puts greater productivity within easy reach. Equipped with an armored glass top window, curved front and rear windows and steel doors with tempered glass, the operator cab provides excellent all-around visibility. Inside the cab there is more space with the largest entry area in the industry, more control with a full-color screen displaying performance data at the operator’s fingertips and more comfort with an exclusive lateral sliding seat, adjustable steering column and foot pedal, plus ergonomic controls.

Low cost of ownership

Fuel consumption is a key driver of the total cost of ownership for heavy duty lift trucks. Hyster high capacity lift trucks are engineered with integrated powertrain system and on-demand hydraulics to deliver low fuel consumption with high levels of productivity.

The engine design produces more power and torque using XPI high-pressure, common-rail fuel injection and variable geometry turbochargers. Advanced controls enable the engine to provide peak performance and operating efficiency while delivering great fuel economy and durability.

Easily serviceable

Hyster forklifts are designed with the service technician in mind. Gull-wing hoods provide quick access to key components, and daily checks don’t require tilting the cab. A tilting cab provides easy access to hydraulic components in seconds. Galvanized, broad, slip-resistant running boards foster quick daily checks, while a large access bay enables easy radiator cleaning. A hydraulic sight gauge makes for at-a-glance fluid level checks.

Excellent visibility

A low profile carriage enables a clear line of vision for an optimized view of fork tips. Forward visibility is uncluttered by the position of hydraulic valves, hoses or mast crossmembers with a clear view through the mast window. Canted hoses are arranged along the line of sight so the operator sees only one hose and has good visibility.

Curved, scratch resistant, tempered glass front and rear windshields, armored glass top window and steel-framed glass doors provide operators with excellent all-around visibility. On the exterior, sloping counterweights enhance visibility of steer tires for improved maneuverability and reduced tire gouging.

  • capacity: 40000-45000lbs
  • Environment Specification 1: Outdoors
  • load_weight: 45000lbs
  • max_lift_height: 275
  • models: H400-450XD
  • Robust design
  • Excellent visibility
  • Operator comfort
  • Easily serviceable
  • Low cost of ownership
