20MVL
Get a Quote
(678) 599-9000
Call
Get a Quote
Home
Catalog
Aerial
Vertical Lifts and Stock Pickers
Current:

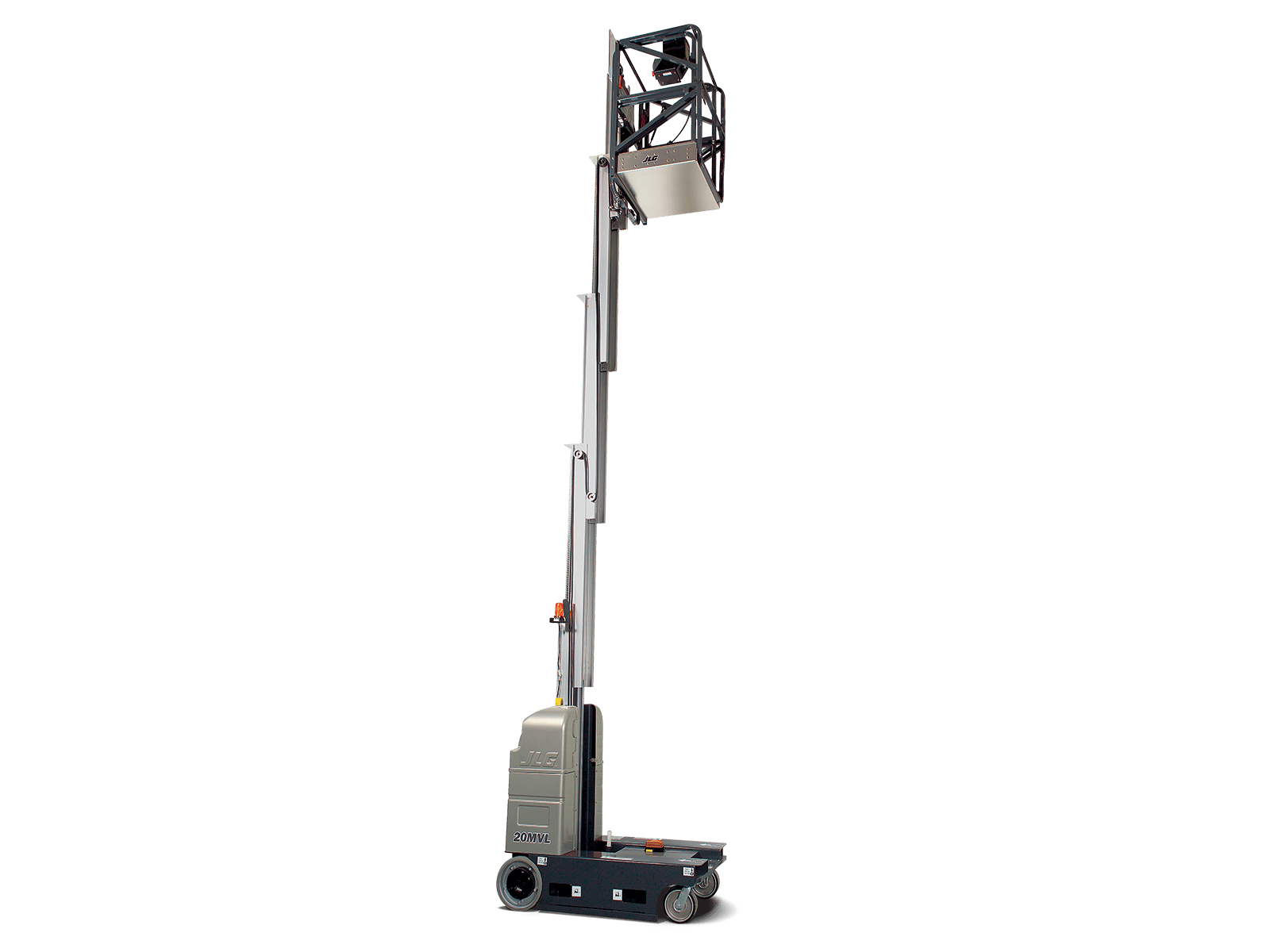

20MVL
Make
JLG
Model
20MVL
Type
Vertical Lifts and Stock Pickers
Description
Specifications
Features
Docs & Downloads
Key Specs
Platform Height
:
19 ft 1 in. / 5.82 m
Machine Width
:
2 ft 6 in. / 0.75 m
Key Features

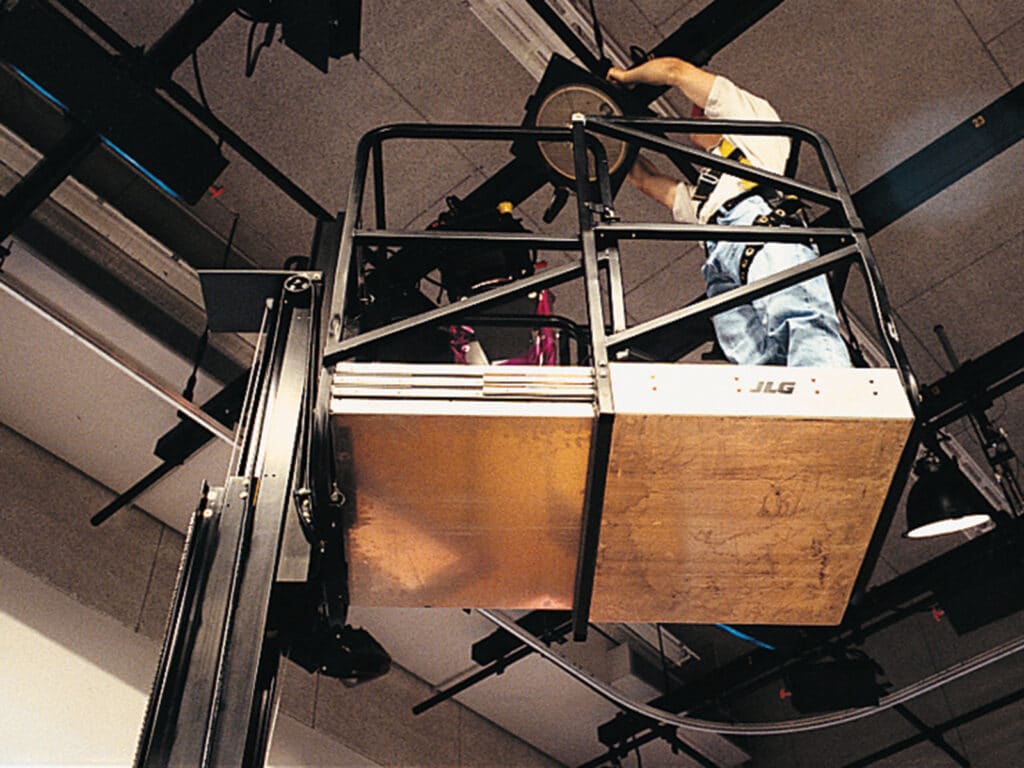

Five platform options with exclusive “Quick Change” mountings for one-minute change-outs
Exclusive Point & Go
®
single joystick control operates drive and steer, and lift and lower
Rigid mast for operator comfort and stability
Batteries:
Two Sealed-100 AH 12 Volt
Drive Speed - Platform Elevated:
0.6 mph / 0.97 km/h
Drive Speed - Platform Lowered:
3.5 mph / 5.63 km/h
Drive System:
4 Brush Direct Electric
Gradeability:
20 %
Ground Clearance:
2 in. / 0.05 m
Ground Entry Height:
1 ft 6 in. / 0.46 m
Machine Height:
6 ft 6 in. / 1.98 m
Machine Length:
4 ft 6 in. / 1.36 m
Machine Weight:
2325 lb / 1054.60 kg
Machine Width:
2 ft 6 in. / 0.75 m
Maximum Drive Height:
19 ft 6 in. / 5.94 m
Maximum Lift Height:
19.5 ft / 5.94 m
Platform Capacity:
350 lb / 158.76 kg
Platform Dimension A:
2 ft 2 in. / 0.66 m
Platform Dimension B:
2 ft 4 in. / 0.71 m
Platform Height:
19 ft 1 in. / 5.82 m
Wheel Size - Front Caster:
8 x 2.5"
Wheel Size - Rear:
12.62 x 4"
Working Height:
25 ft 1 in. / 7.65 m
Five platform options with exclusive “Quick Change” mountings for one-minute change-outs
Exclusive Point & Go® single joystick control operates drive and steer, and lift and lower
Rigid mast for operator comfort and stability
