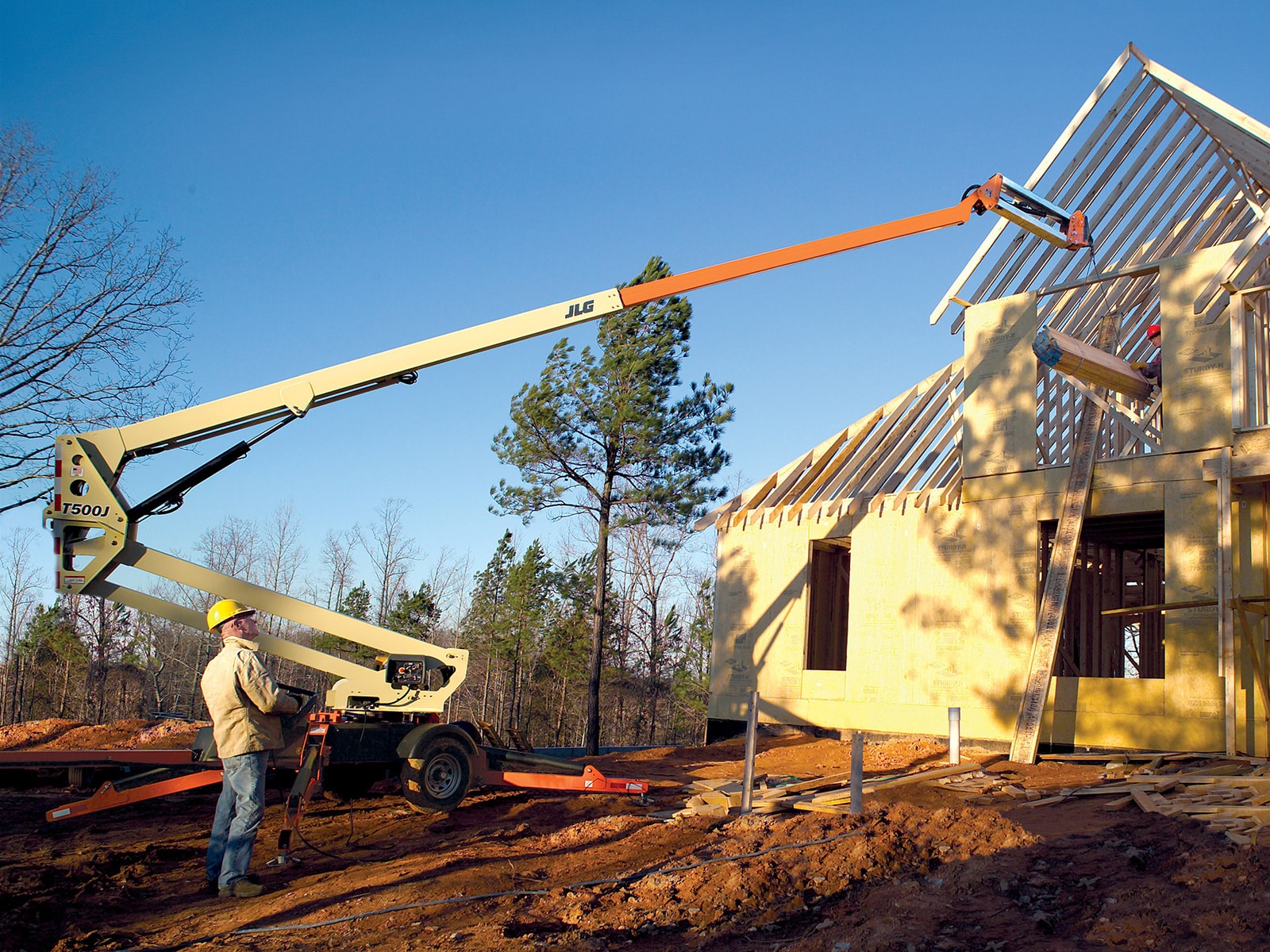

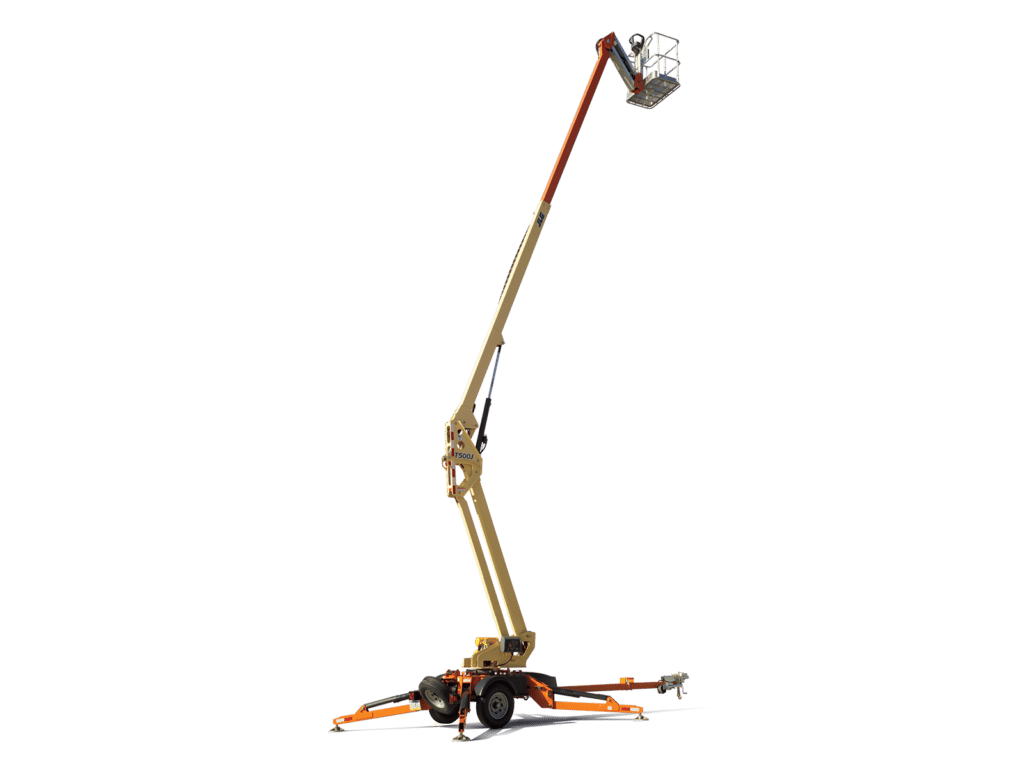

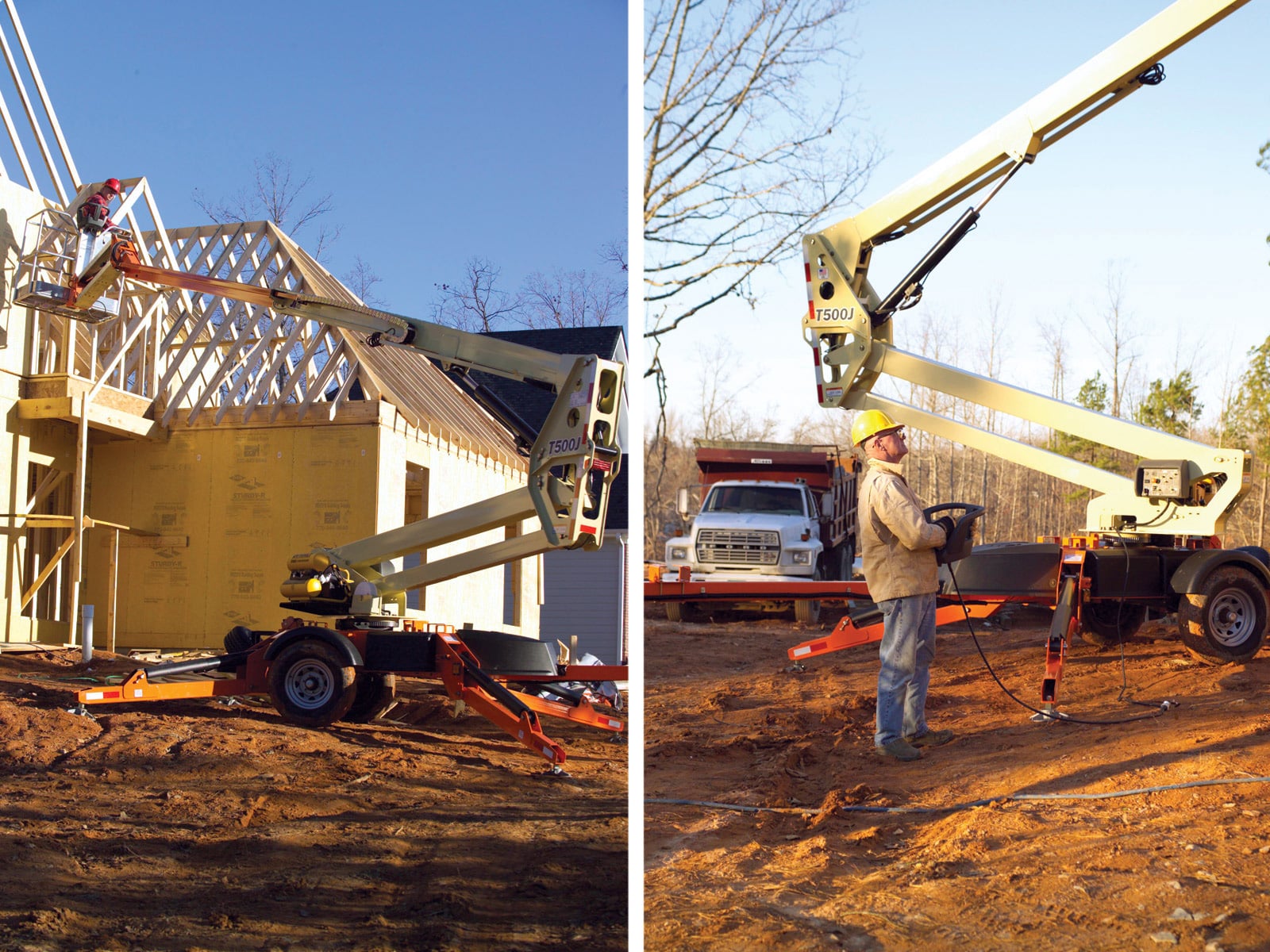

Make JLG
Model T500J
Type Towable Boom Lifts

Key Specs

  • Horizontal Outreach: 30 ft / 9.14 m
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Height: 50 ft / 15.24 m

Key Features

  • Gasoline engine or 24V DC electric power
  • Standard air and water lines to platform
  • Accessory Mounting Tray accommodates your generator, air compressor or pressure washer
  • Batteries: 4 x 6V 220 amp-hr
  • Capacity - Hydraulic Reservoir: 6 gal. / 22.71 L
  • Ground Entry Height: 1 ft 3 in. / 0.38 m
  • Horizontal Outreach: 30 ft / 9.14 m
  • Jib - Range of articulation: 130 Degrees
  • Leveling Capability: 11 Degrees
  • Machine Height: 7 ft 5 in. / 2.26 m
  • Machine Length: 27 ft 4 in. / 8.33 m
  • Machine Weight: 4800 lb / 2177.24 kg
  • Machine Width: 5 ft 7 in. / 1.7 m
  • Maximum Ground Bearing Pressure: 31 psi / 2.17 Kg/cm2
  • Outrigger Footprint Length: 12 ft 4 in. / 3.76 m
  • Outrigger Footprint Width: 12 ft 8 in. / 3.86 m
  • Outriggers or Stabilizers: Yes
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Platform Dimension B: 4 ft / 1.22 m
  • Platform Height: 50 ft / 15.24 m
  • Swing: 410 Degrees
  • Swing Type: Non-Continuous
  • Tire Size: 225/75 R14 Pnuematic
  • Towing Speed Rating: 65 mph / 104.61 km/h
  • Up and Over Height: 18 ft / 5.49 m
  • Accessory Mounting Tray accommodates your generator, air compressor or pressure washer
  • Standard air and water lines to platform
  • Gasoline engine or 24V DC electric power
