Key Specs
- Horizontal Outreach: 20 ft 2 in. / 6.15 m
- Platform Capacity: 500 lb / 226.80 kg
- Platform Height: 34 ft 5 in. / 10.49 m
Key Features
- Gasoline engine or 24V DC electric power
- Standard air and water lines to platform
- Accessory Mounting Tray accommodates your generator, air compressor or pressure washer
- Batteries: 4 x 6V 220 amp-hr
- Capacity - Hydraulic Reservoir: 4 gal. / 15.14 L
- Ground Clearance: 1 ft 2 in. / 0.36 m
- Ground Entry Height: 10 in. / 0.25 m
- Horizontal Outreach: 20 ft 2 in. / 6.15 m
- Jib - Range of articulation: 0 Degrees
- Leveling Capability: 11 Degrees
- Machine Height: 6 ft 6 in. / 1.98 m
- Machine Length: 21 ft 9 in. / 6.63 m
- Machine Weight: 3400 lb / 1542.21 kg
- Machine Width: 4 ft 9 in. / 1.45 m
- Maximum Ground Bearing Pressure: 23 psi / 1.61 Kg/cm2
- Outrigger Footprint Length: 11 ft 7 in. / 3.53 m
- Outrigger Footprint Width: 10 ft 5 in. / 3.18 m
- Outriggers or Stabilizers: Yes
- Platform Capacity: 500 lb / 226.80 kg
- Platform Dimension A: 2 ft 6 in. / 0.76 m
- Platform Dimension B: 4 ft / 1.22 m
- Platform Height: 34 ft 5 in. / 10.49 m
- Swing: 410 Degrees
- Swing Type: Non-Continuous
- Tire Size: 205/75 R14 Pnuematic

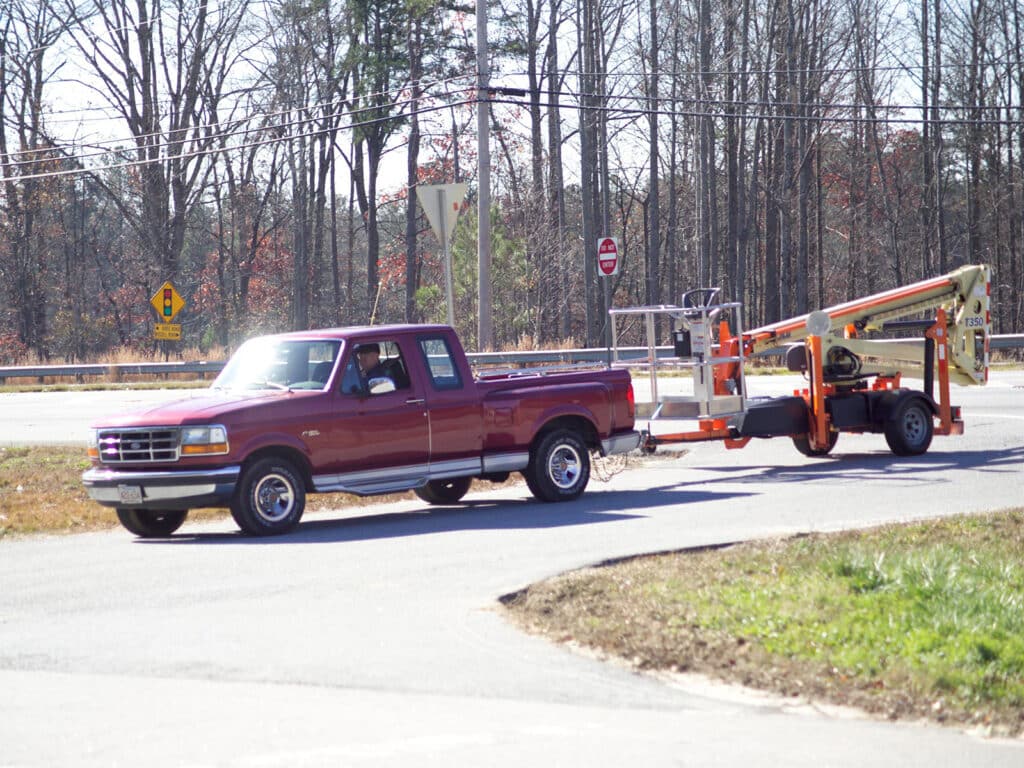

- Towing Speed Rating: 65 mph / 104.61 km/h
- Up and Over Height: 15 ft / 4.57 m
- Gasoline engine or 24V DC electric power
- Accessory Mounting Tray accommodates your generator, air compressor or pressure washer
- Standard air and water lines to platform
