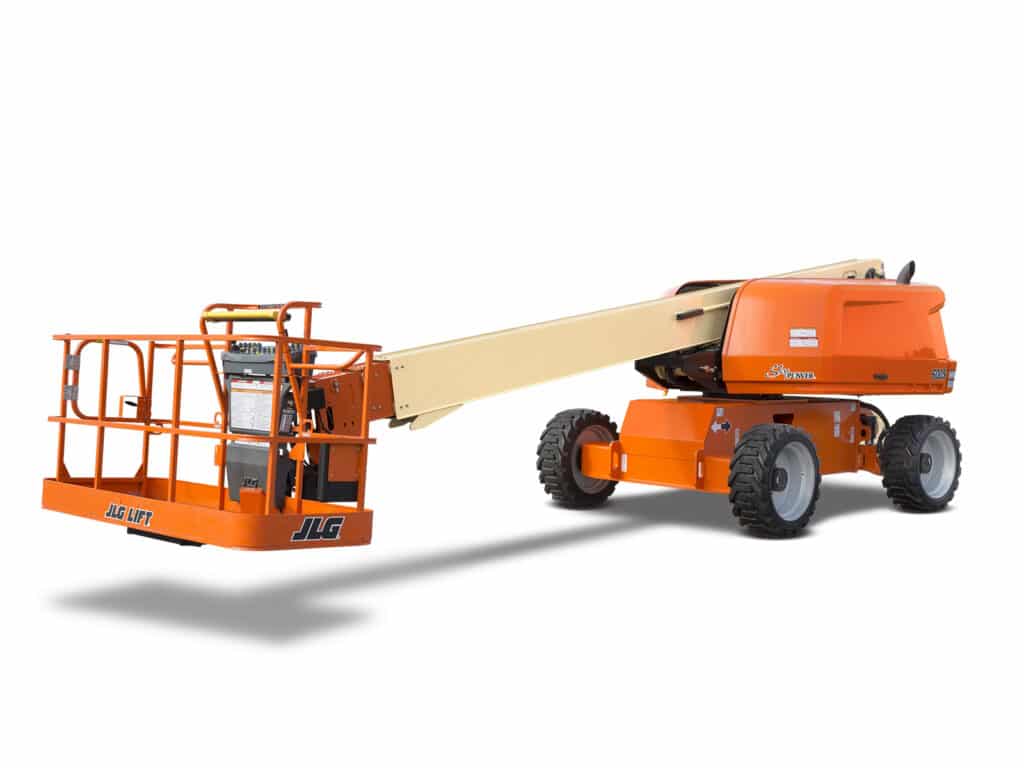

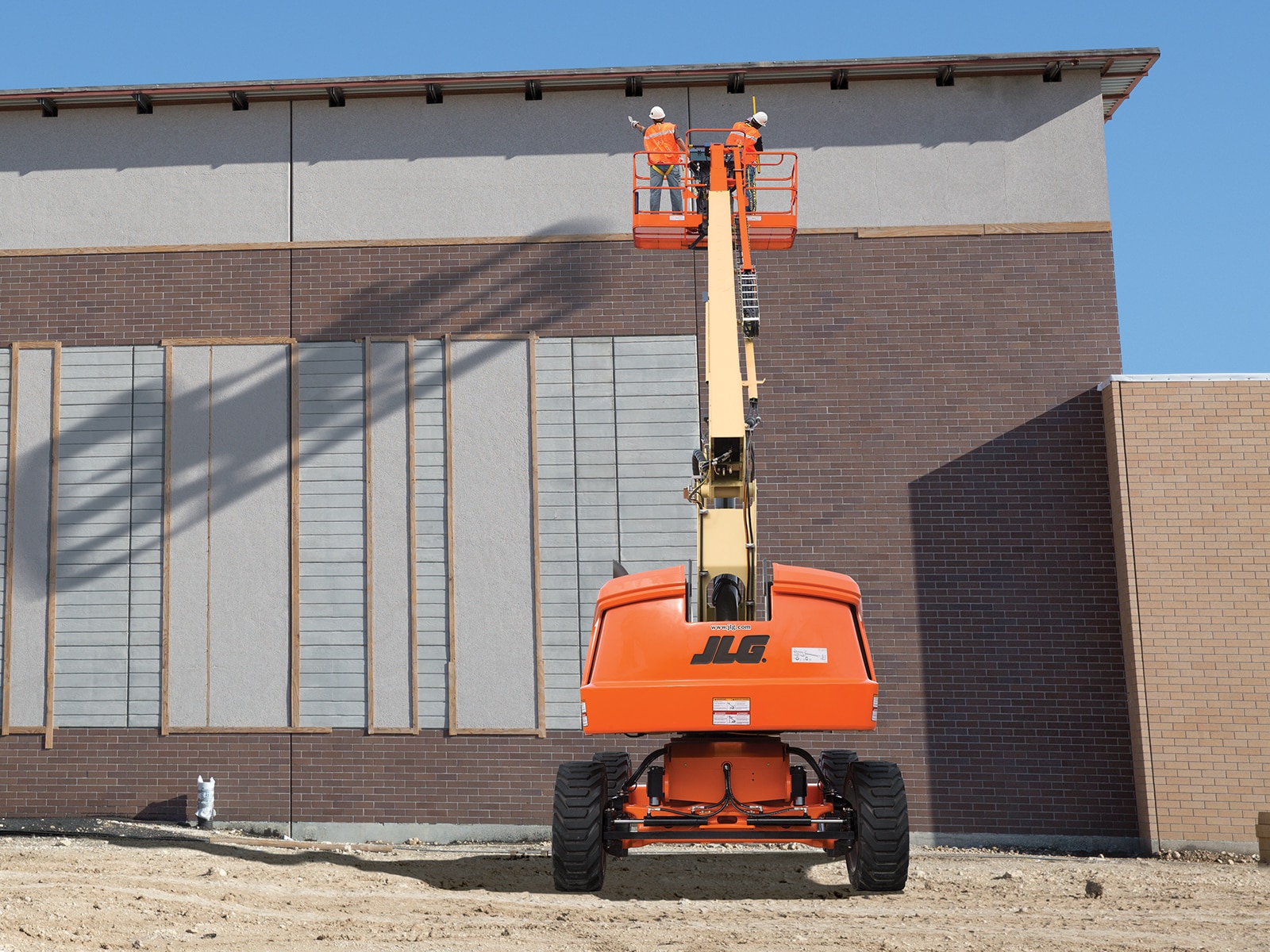

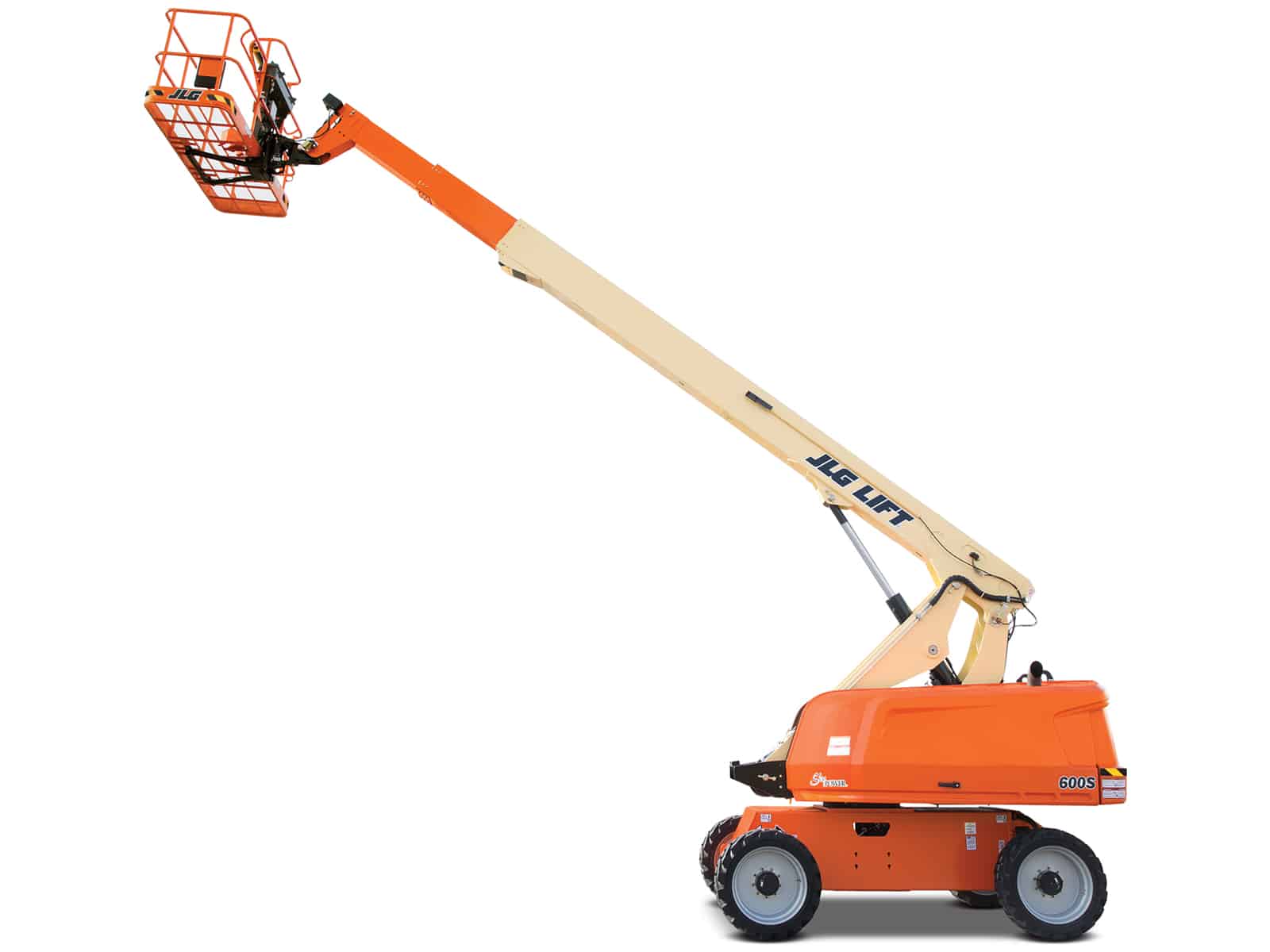

Make JLG
Model 600S
Type Telescopic Booms

Key Specs

  • Platform Height: 59 ft 8 in. / 18.19 m
  • Platform Capacity - Restricted: 1000 lb / 453.59 kg
  • Platform Capacity - Unrestricted: 600 lb / 272.16 kg
  • Horizontal Outreach: 50 ft 2 in. / 15.29 m

Key Features

  • Greater Platform Capacity - Newly designed with 600 lb of platform capacity
  • Faster Ascent - Reaches full height quicker for higher productivity on the job site
  • Easy to Transport - Fit two on one truck with no overweight permit
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 8 in. / 0.2 m
  • Capacity - Fuel Tank: 31 gal. / 117.35 L
  • Capacity - Hydraulic Reservoir: 34 gal. / 128.70 L
  • Drive Speed - 4WD: 3.8 mph / 6.12 km/h
  • Engine Type - Diesel: Deutz TD2.9L4 67 hp (50 kW) Tier 4 Final
  • Engine Type - Dual Fuel: Ford MSG425-DF 84 hp (62.6 kW)
  • Gradeability - 4WD: 45 %
  • Ground Clearance: 11 in. / 0.29 m
  • Horizontal Outreach: 50 ft 2 in. / 15.29 m
  • Machine Height: 8 ft 2 in. / 2.5 m
  • Machine Length: 28 ft 7 in. / 8.71 m
  • Machine Weight: 21461 lb / 9734.55 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Maximum Ground Bearing Pressure: 78 psi / 5.46 Kg/cm2
  • Platform Capacity - Restricted: 1000 lb / 453.59 kg
  • Platform Capacity - Unrestricted: 600 lb / 272.16 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 59 ft 8 in. / 18.19 m
  • Swing: 360 Degrees
  • Tailswing: 4 ft / 1.22 m
  • Tire Size: 41/181.1 X 22.5
  • Turning Radius - Outside (2WS): 19 ft 7 in. / 5.97 m
  • Turning Radius - Outside (4WS): 12 ft 8 in. / 3.86 m
  • Faster Ascent - Reaches full height quicker for higher productivity on the job site
  • Easy to Transport - Fit two on one truck with no overweight permit
  • Greater Platform Capacity - Newly designed with 600 lb of platform capacity
