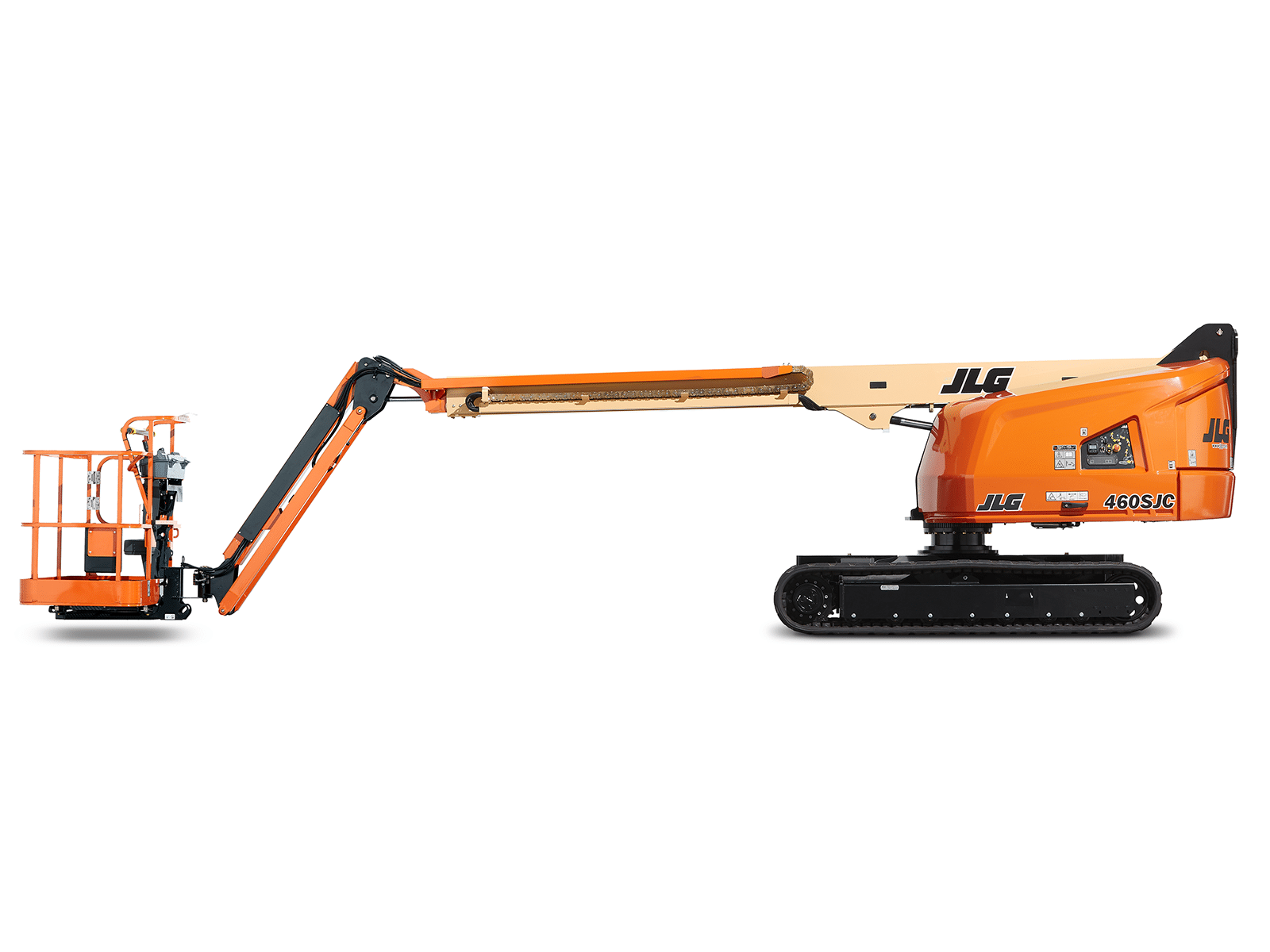

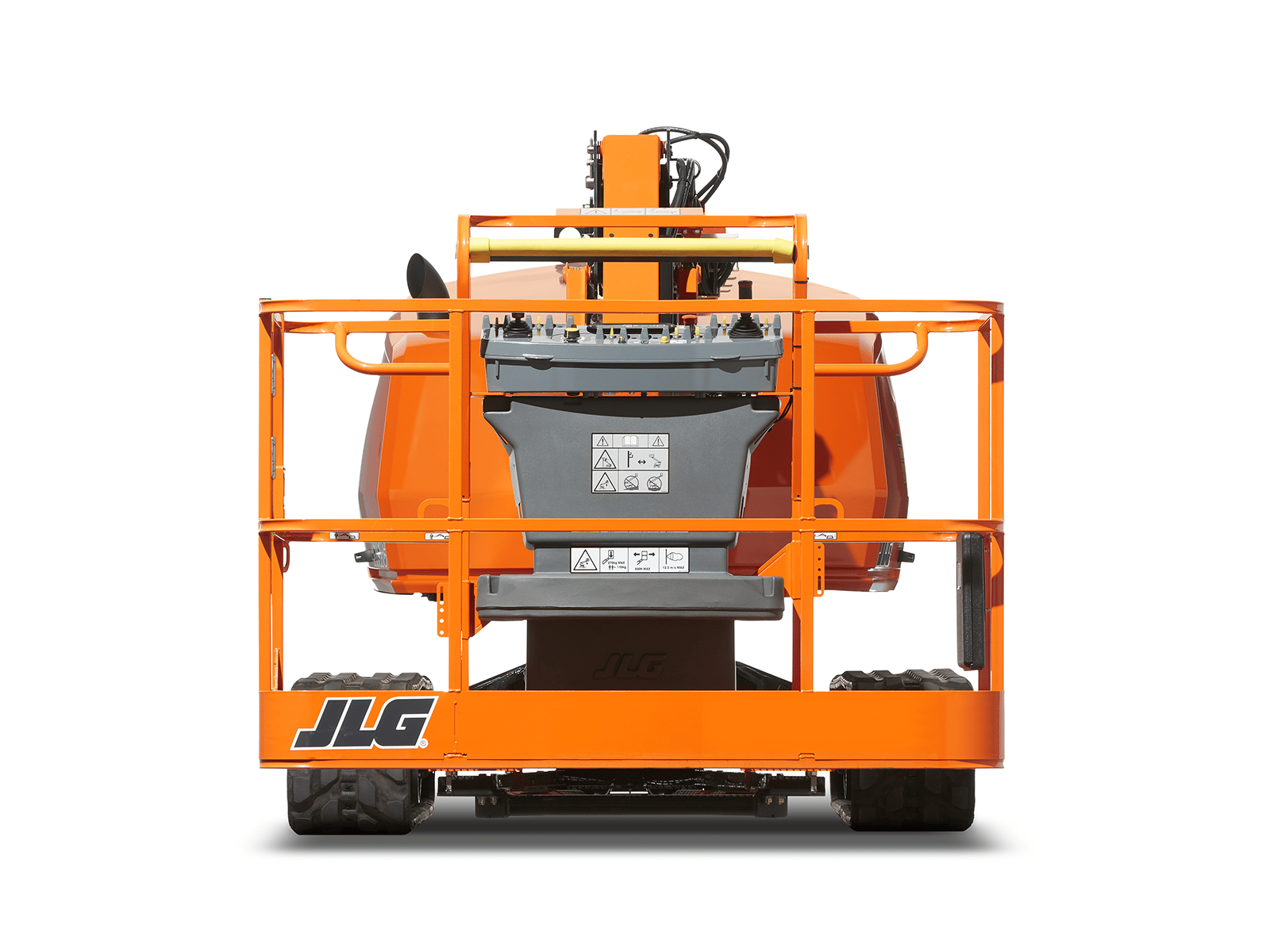

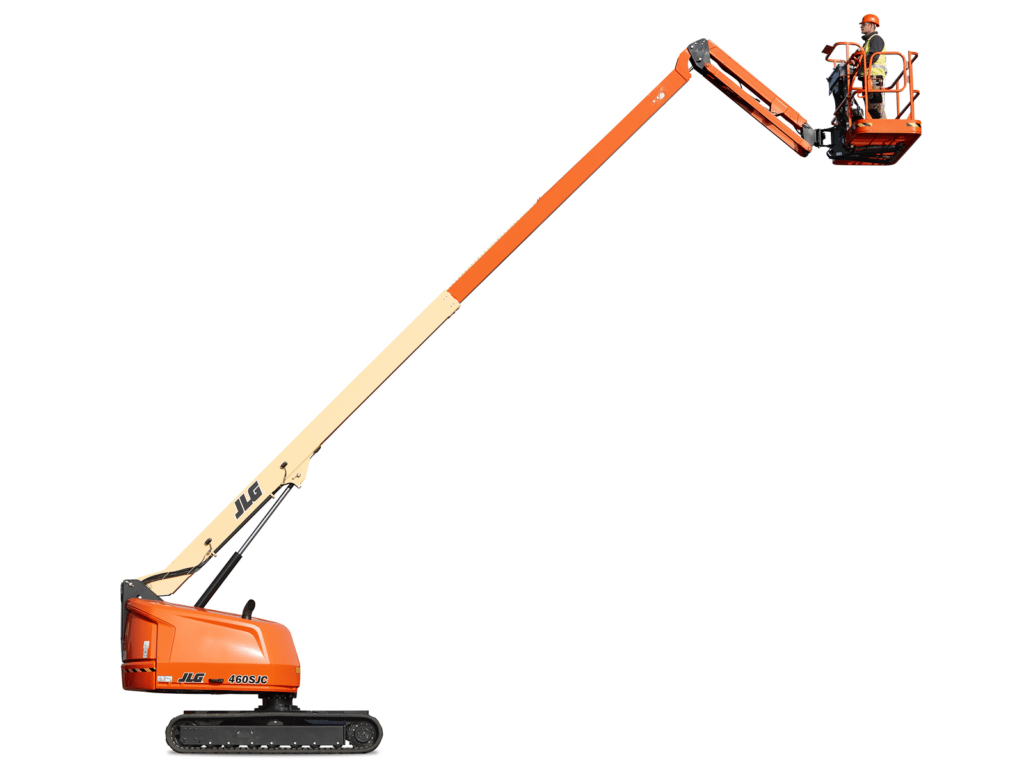

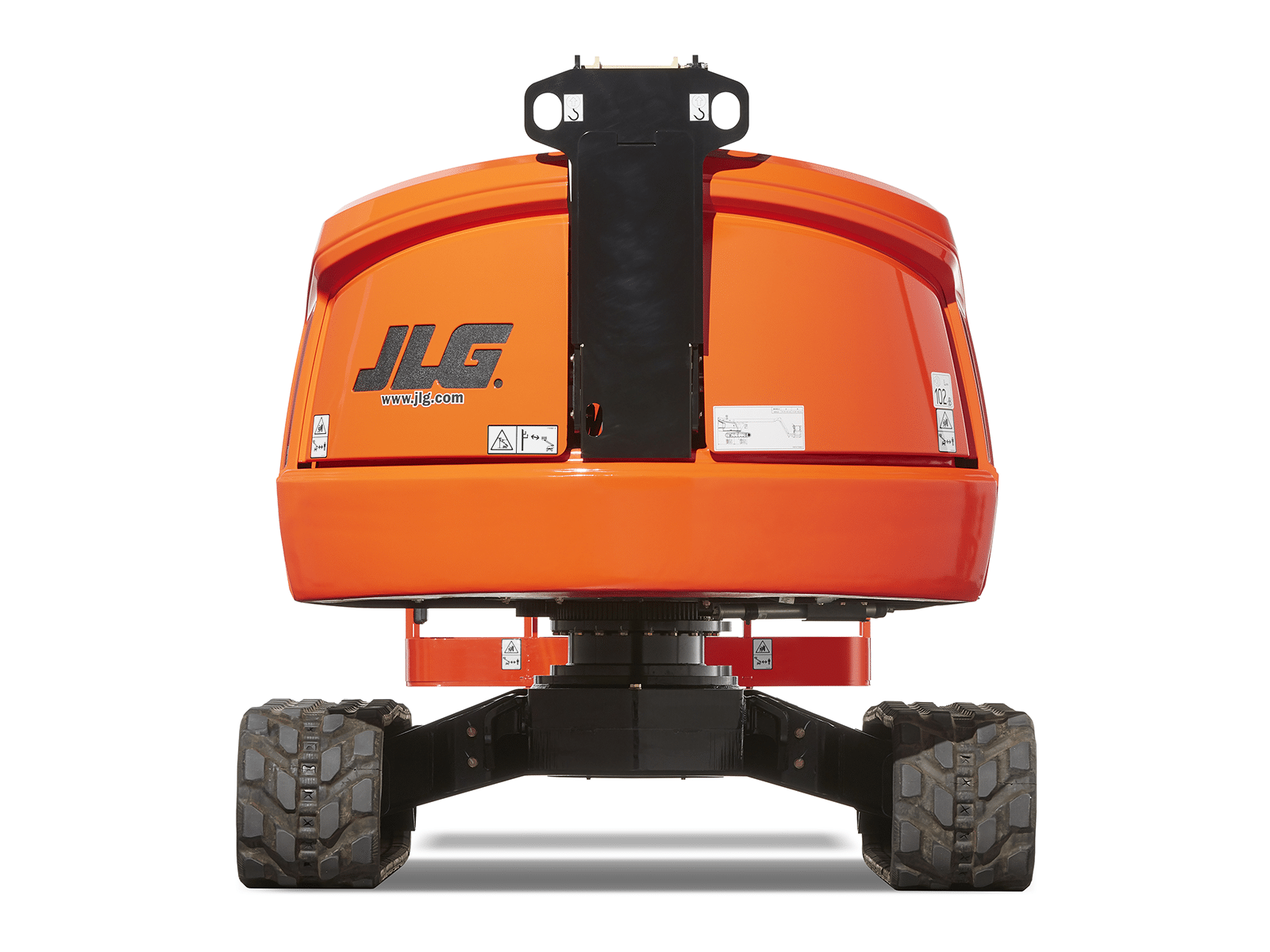

Make JLG
Model 460SJC
Type Telescopic Booms

Key Specs

  • Platform Height: 45 ft 6 in. / 13.88 m
  • Platform Capacity - Unrestricted: 600 lb / 272.16 kg
  • Horizontal Outreach: 39 ft / 11.89 m

Key Features

  • Industry-leading Capacity - 600-lb unrestricted capacity allows operators to carry more tools
  • Improved Fuel Efficiency - Variable-speed engine control reduces operating costs and engine wear and tear
  • Increased Work Envelope - 6-ft articulating jib lets operators reach more and reposition less when avoiding obstacles
  • Superior Terrainability - Full-size tracks make areas with soft ground, mud, sand and snow accessible
  • Enhanced Productivity - Faster function speeds and multifunction capability allow operators to perform more functions at once
  • More Durability - DuraTough hood is highly impact resistant for less maintenance and greater protection of interior components
  • Auxiliary Power: 12 Volts DC
  • Capacity - Fuel Tank: 31 gal. / 117.35 L
  • Capacity - Hydraulic Reservoir: 36 gal. / 136.27 L
  • Drive Speed - 4WD: 1.8 mph / 2.90 km/h
  • Engine Type - Diesel: Deutz D2.9L4 Tier 4 Final 49 hp (36.4 kW)
  • Gradeability - 4WD: 51 %
  • Ground Clearance: 1 ft 1 in. / 0.32 m
  • Horizontal Outreach: 39 ft / 11.89 m
  • Jib - Range of articulation: 130 Degrees
  • Machine Height: 7 ft 7 in. / 2.32 m
  • Machine Length: 29 ft 3 in. / 8.92 m
  • Machine Weight: 17998 lb / 8163.76 kg
  • Machine Width: 7 ft 4 in. / 2.24 m
  • Maximum Ground Bearing Pressure: 8.4 psi / 0.58 Kg/cm2
  • Platform Capacity - Unrestricted: 600 lb / 272.16 kg
  • Platform Height: 45 ft 6 in. / 13.88 m
  • Swing: 360 Degrees
  • Tailswing: 3 ft 2 in. / 0.97 m
  • Track Width: 1 ft 4 in. / 0.4 m
  • Increased Work Envelope - 6-ft articulating jib lets operators reach more and reposition less when avoiding obstacles
  • Industry-leading Capacity - 600-lb unrestricted capacity allows operators to carry more tools
  • Superior Terrainability - Full-size tracks make areas with soft ground, mud, sand and snow accessible
  • Enhanced Productivity - Faster function speeds and multifunction capability allow operators to perform more functions at once
  • More Durability - DuraTough hood is highly impact resistant for less maintenance and greater protection of interior components
  • Improved Fuel Efficiency - Variable-speed engine control reduces operating costs and engine wear and tear
