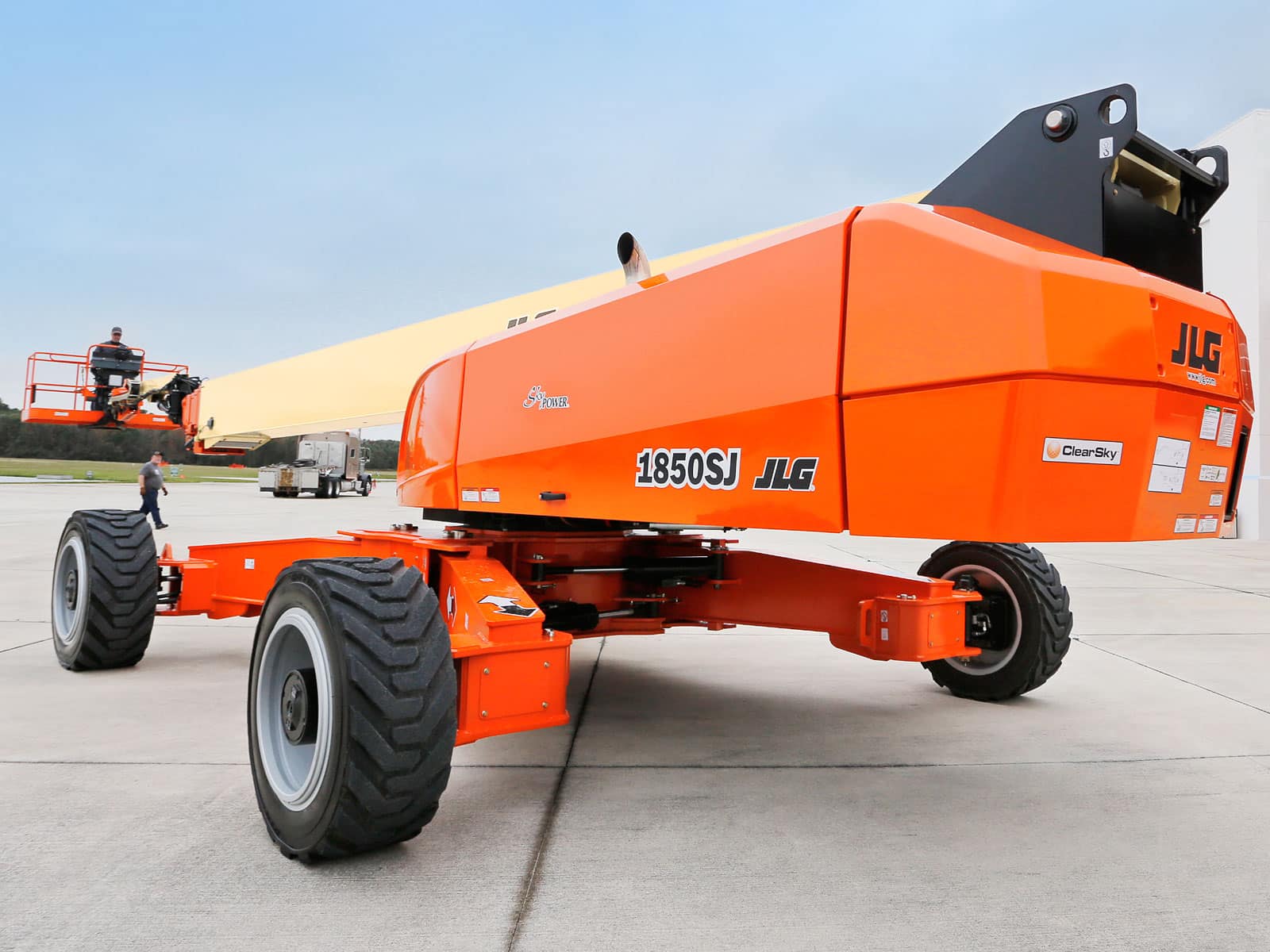

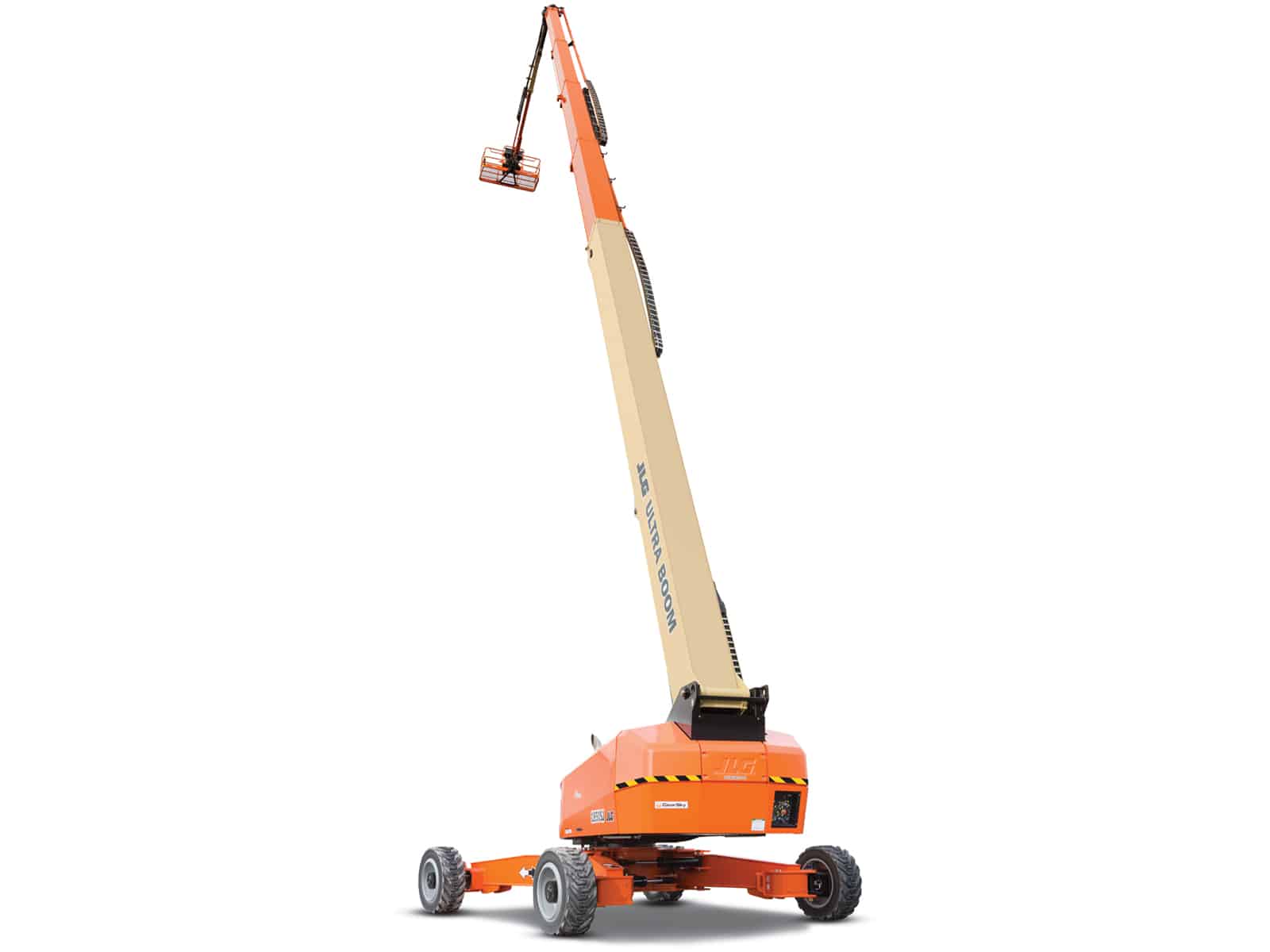

Make JLG
Model 1850SJ
Type Telescopic Booms

Key Specs

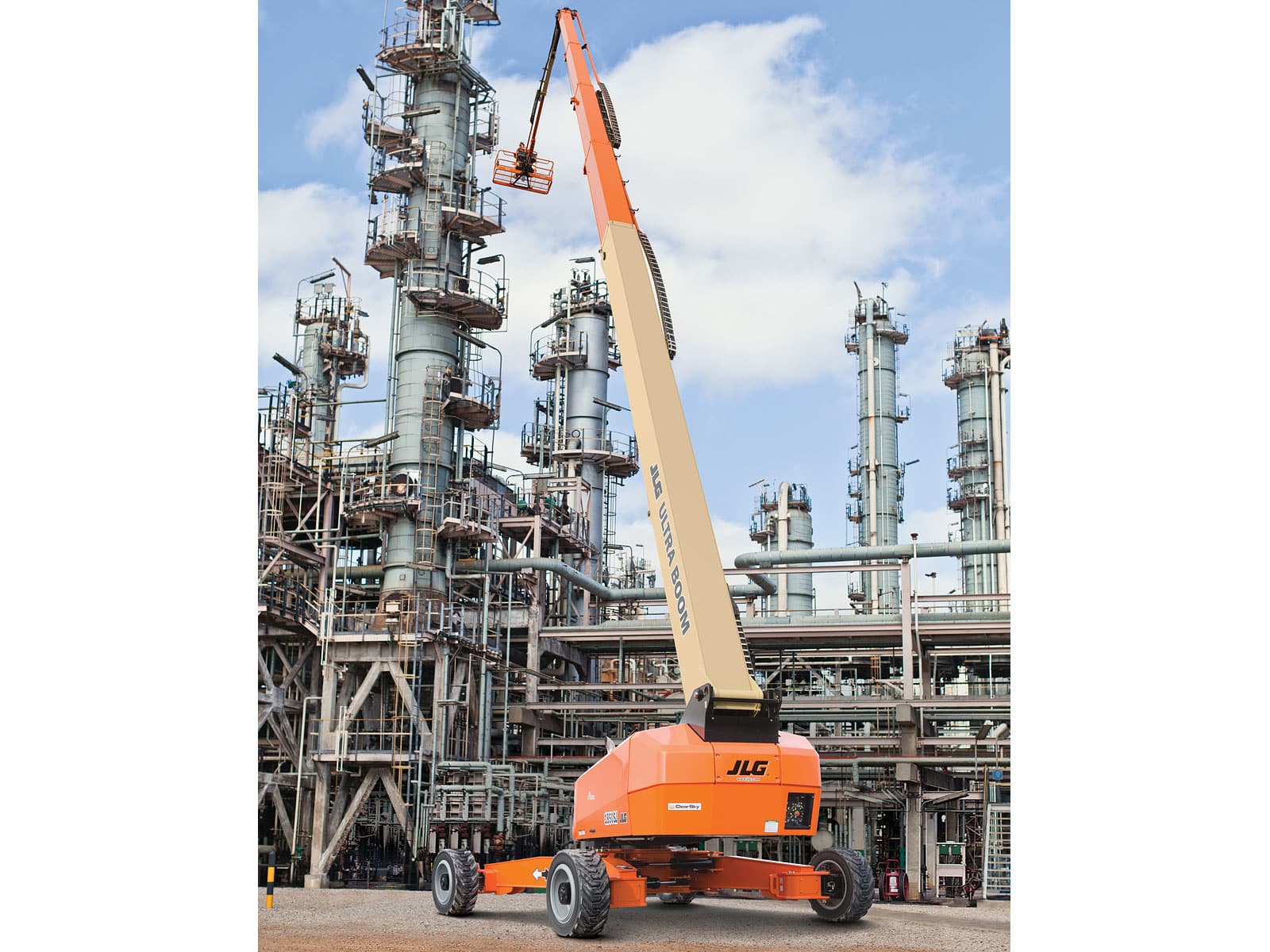

  • Platform Height: 185 ft 7 in. / 56.57 m
  • Platform Capacity - Restricted: 1000 lb / 453.59 kg
  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg

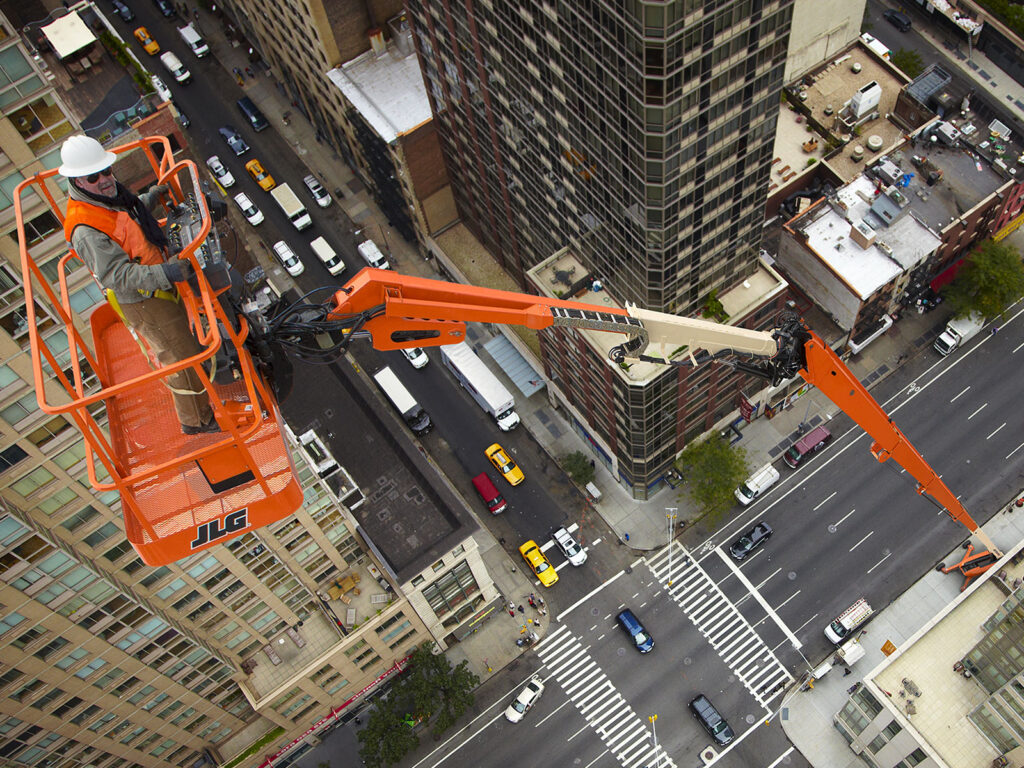

  • Horizontal Outreach: 80 ft / 24.38 m

Key Features

  • Much faster to full height
  • No oversized load permit needed (over weight permit is required for highway transportation)
  • Telescoping jib provides 2.9 million cubic feet of work area
  • Axles take approximately one minute to extend or retract
  • Auxiliary Power: 12 Volts DC
  • Capacity - Fuel Tank: 52.8 gal. / 199.87 L
  • Capacity - Hydraulic Reservoir: 75.1 gal. / 284.28 L
  • Drive Speed - 4WD: 2.8 mph / 4.51 km/h
  • Engine Type - Diesel: Deutz TD3.6L 99.8 HP
  • Gradeability - 4WD: 40 %
  • Ground Clearance: 1 ft 4 in. / 0.41 m
  • Horizontal Outreach: 80 ft / 24.38 m
  • Jib - Range of articulation: 120 Degrees
  • Machine Height: 10 ft / 3.05 m
  • Machine Length: 63 ft 10 in. / 19.44 m
  • Machine Weight: 60300 lb / 27351.62 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Maximum Ground Bearing Pressure: 119.6 psi / 8.38 Kg/cm2

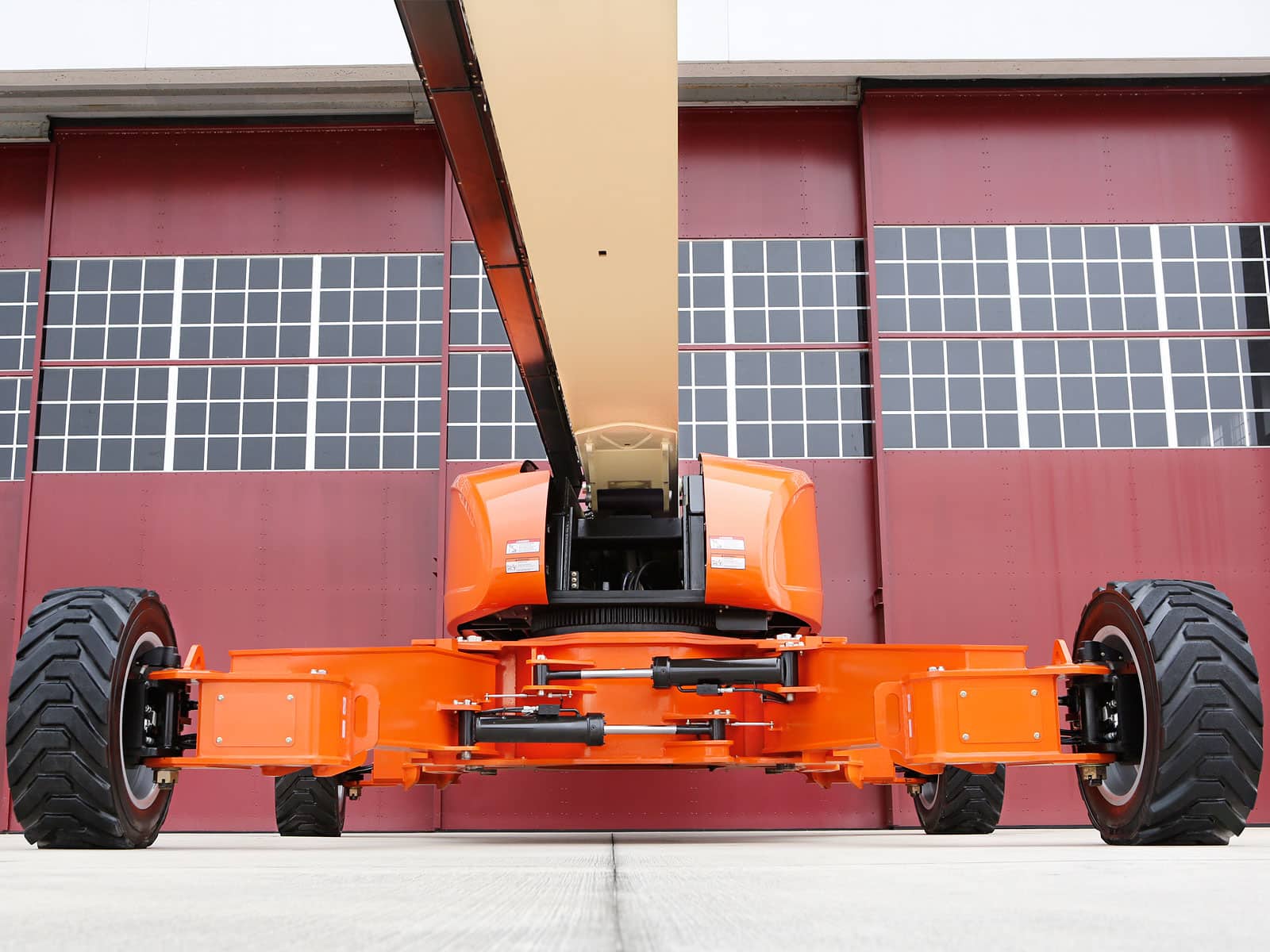

  • Overall Width (Axles Extended): 16 ft 6 in. / 5.03 m
  • Platform Capacity - Restricted: 1000 lb / 453.59 kg
  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 185 ft 7 in. / 56.57 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 7 ft 7 in. / 2.31 m
  • Tire Size: 445/50D710 Foam Filled

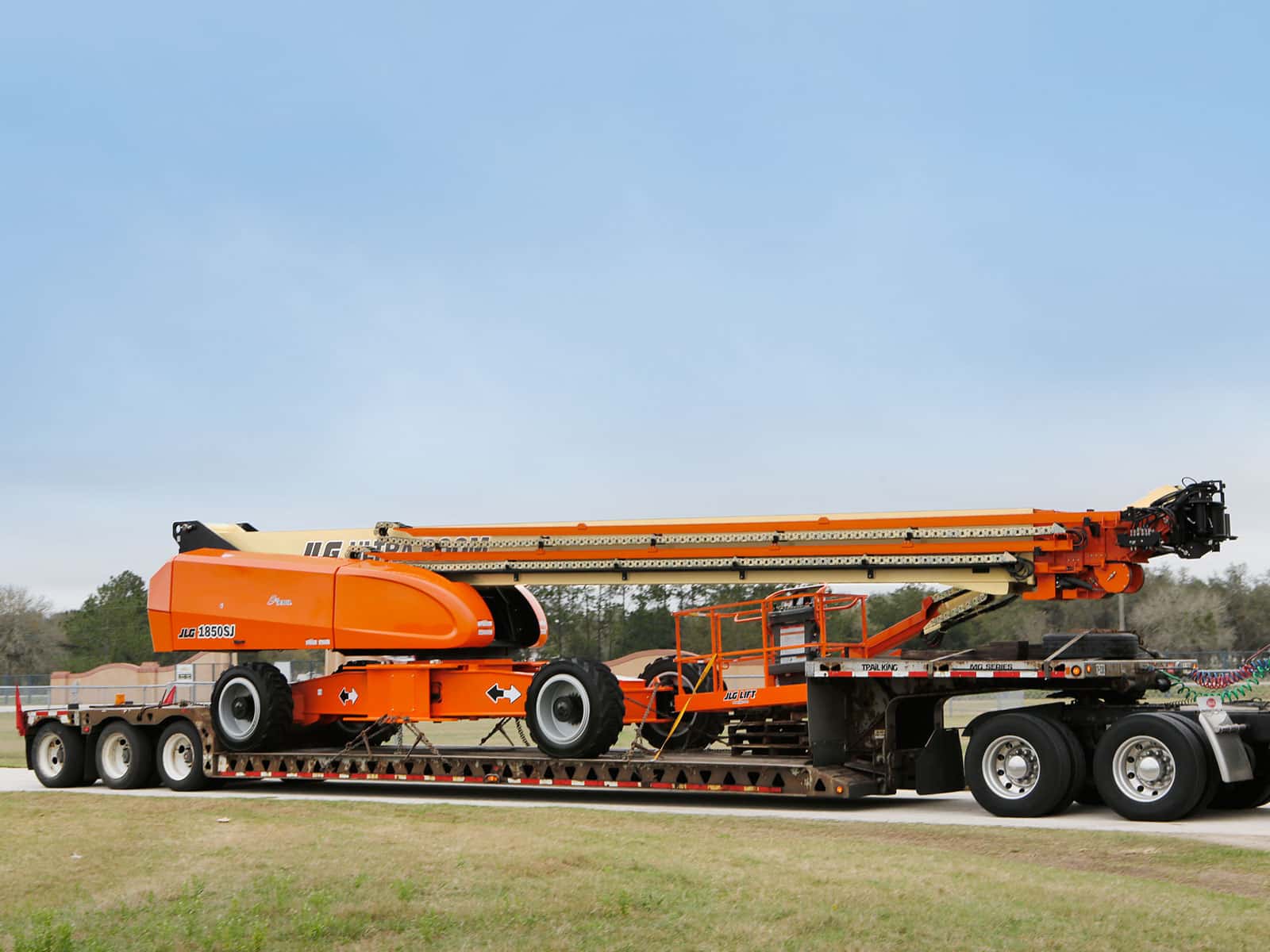

  • Transport Length: 47 ft 10 in. / 14.57 m
  • Turning Radius - Outside (axles extended): 21 ft 8 in. / 6.6 m
  • Turning Radius - Outside (axles retracted): 31 ft 3 in. / 9.53 m
  • No oversized load permit needed (over weight permit is required for highway transportation)
  • Telescoping jib provides 2.9 million cubic feet of work area
  • Axles take approximately one minute to extend or retract
  • Much faster to full height
