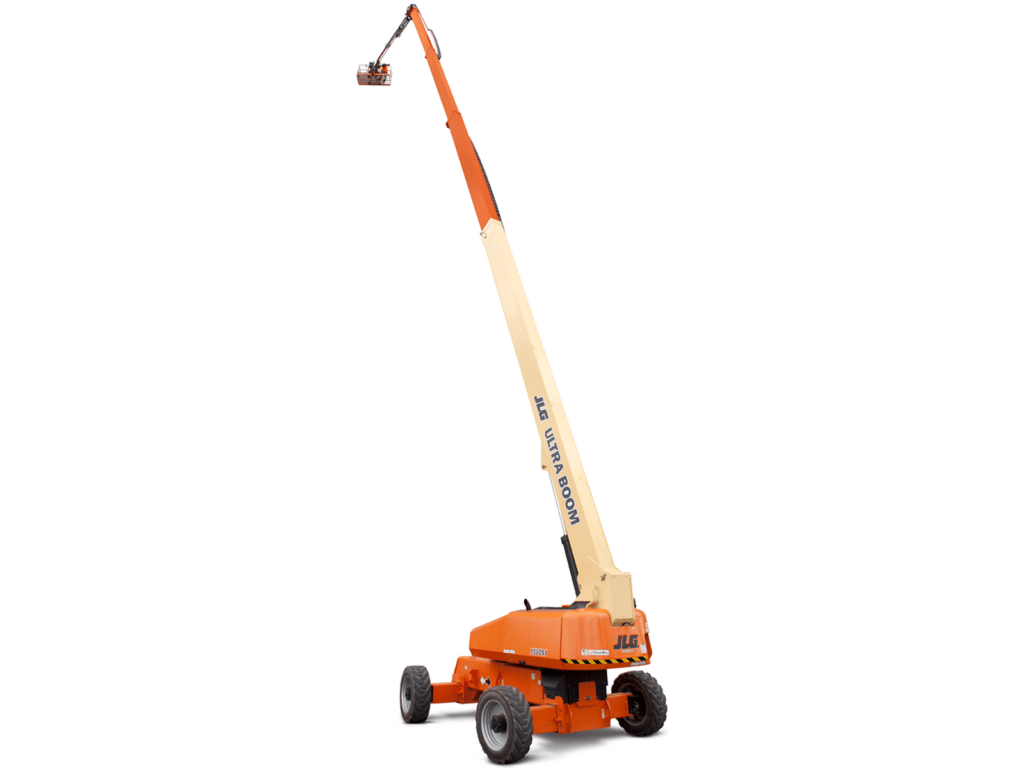

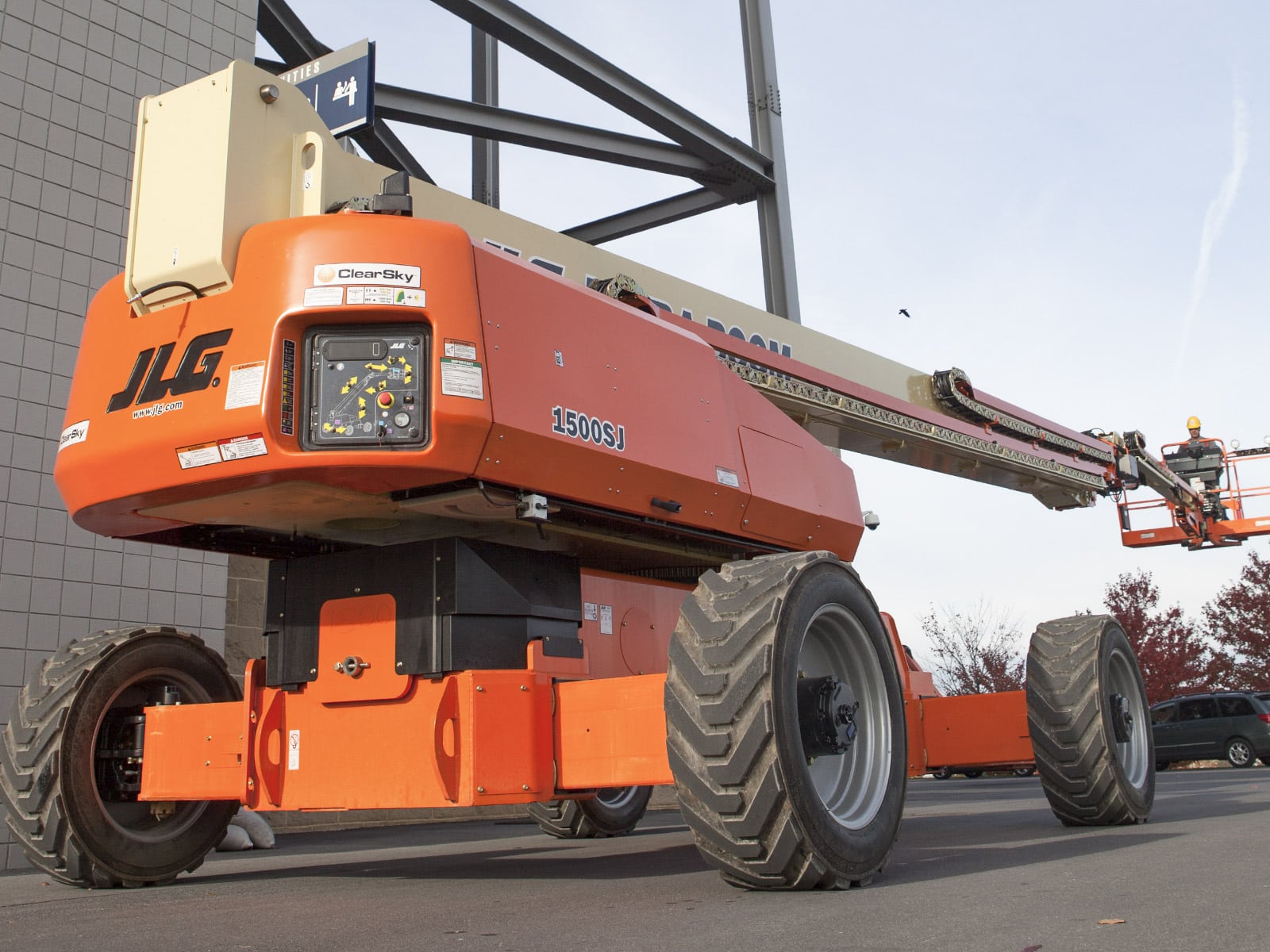

1500SJ
Key Specs
- Platform Height: 150 ft / 45.72 m
- Platform Capacity - Restricted: 1000 lb / 453.59 kg
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 80 ft / 24.38 m
Key Features

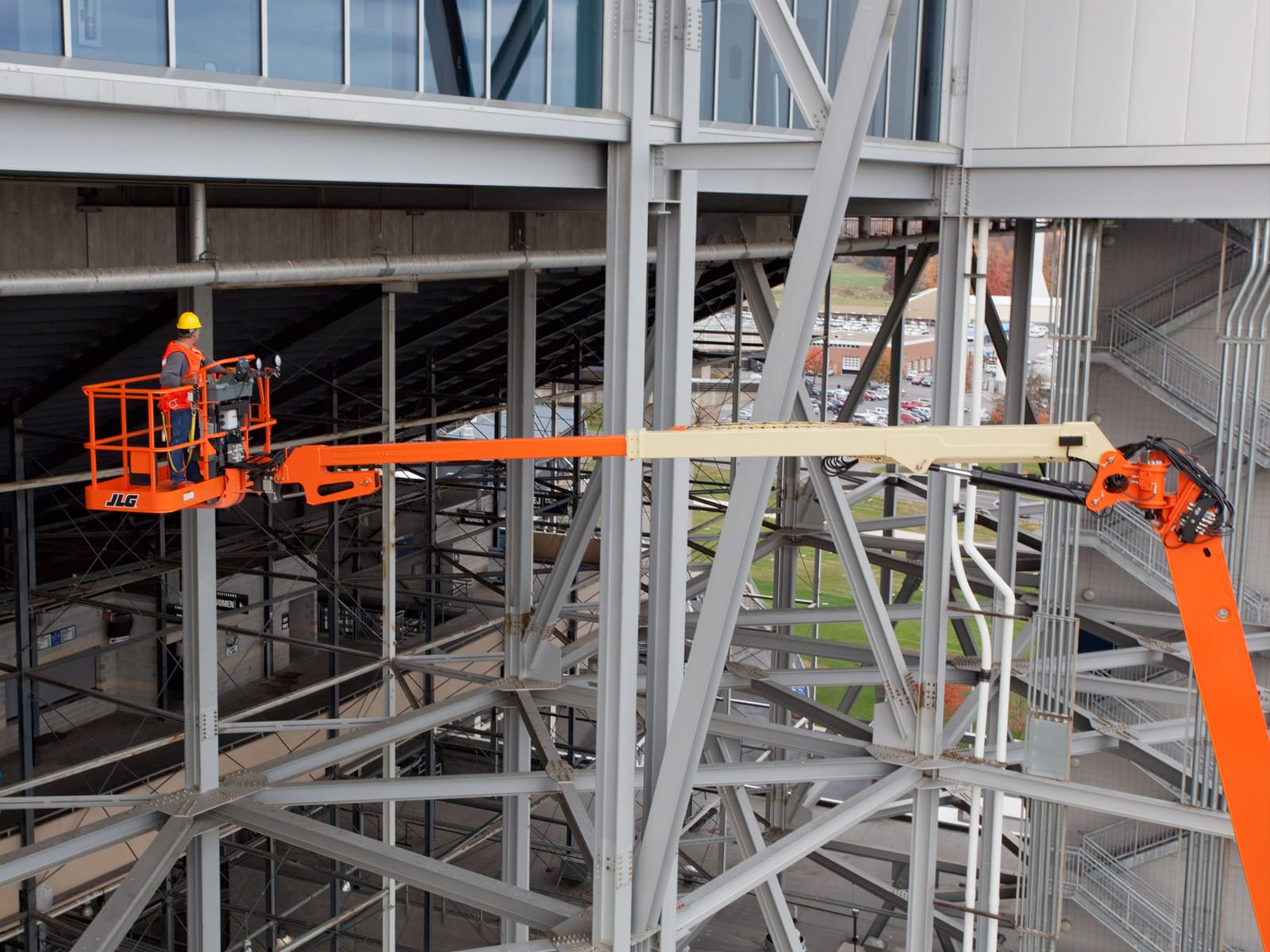

- Telescoping jib provides work envelope flexibility and even more outreach at elevation

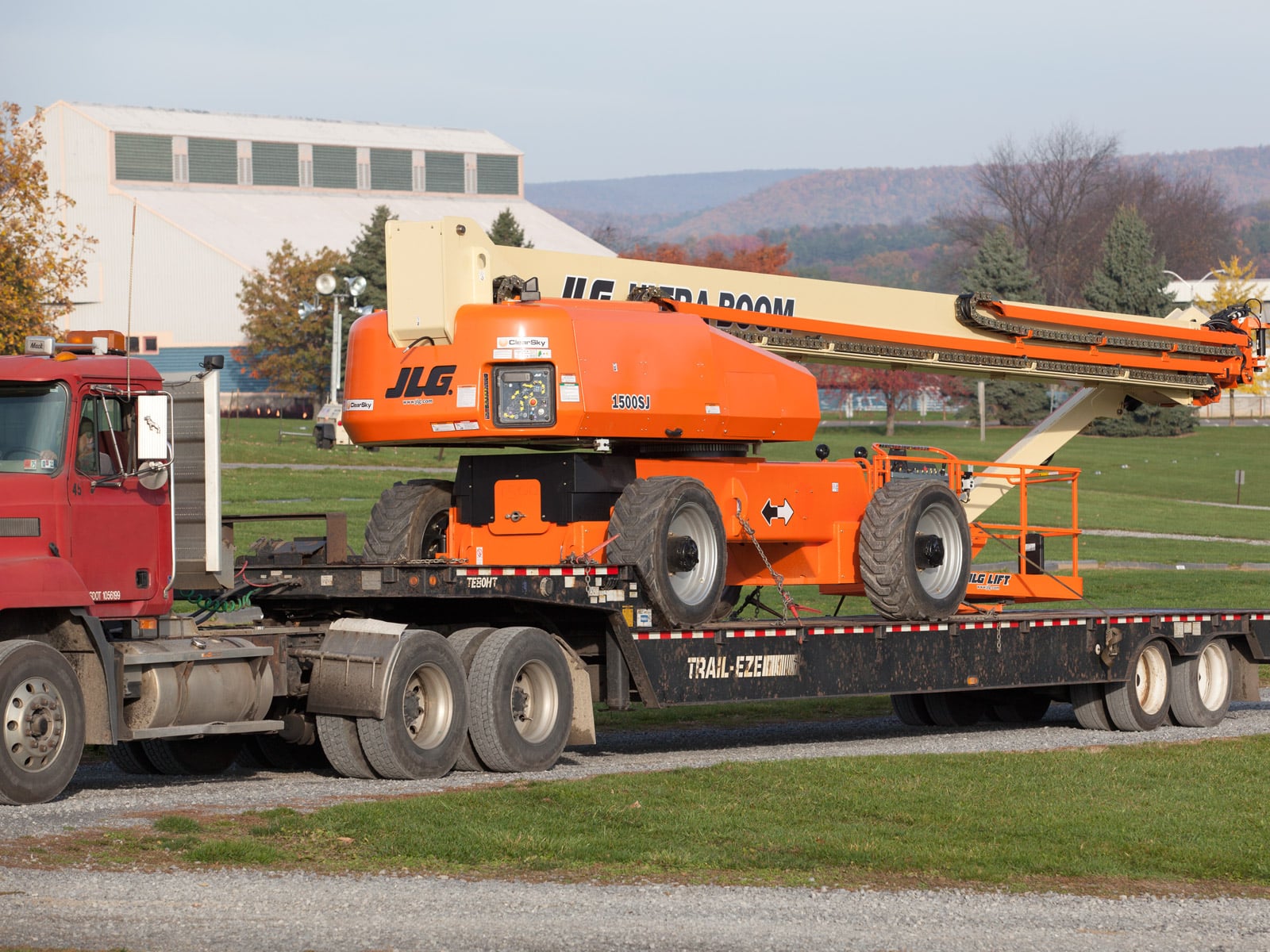

- Ease of transport — no oversized load permit needed (over weight permit is required for highway transportation)
- Strong 100,000-psi steel and a dual 1,000 / 500 lb capacity

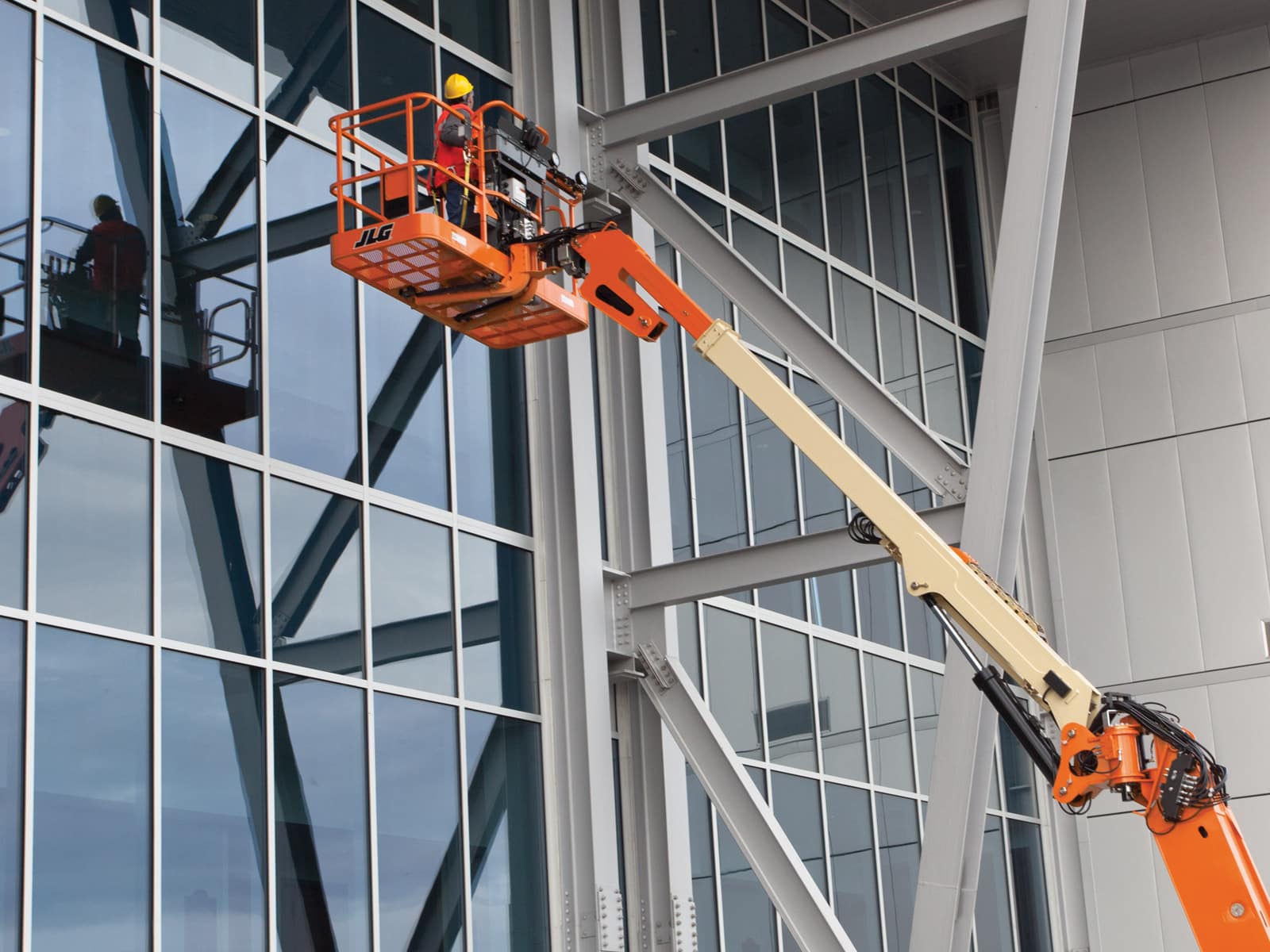

- Ideal for general contractors, glaziers, window cleaners, welders and more
- Auxiliary Power: 12 Volts DC
- Capacity - Fuel Tank: 31 gal. / 117.35 L
- Capacity - Hydraulic Reservoir: 55 gal. / 208.20 L
- Drive Speed - 4WD: 3 mph / 4.83 km/h
- Engine Type - Diesel: DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp
- Gradeability - 4WD: 40 %
- Ground Clearance: 1 ft / 0.3 m
- Horizontal Jib Rotation: 0 Degrees
- Horizontal Outreach: 80 ft / 24.38 m
- Jib - Range of articulation: 120 Degrees
- Machine Height: 10 ft / 3.05 m
- Machine Length: 61 ft 9 in. / 18.81 m
- Machine Weight: 48000 lb / 21772.43 kg
- Machine Width: 8 ft 2 in. / 2.49 m
- Maximum Ground Bearing Pressure: 113 psi / 7.91 Kg/cm2
- Overall Width (Axles Extended): 12 ft 6 in. / 3.81 m
- Platform Capacity - Restricted: 1000 lb / 453.59 kg
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Platform Dimension A: 3 ft / 0.91 m
- Platform Dimension B: 8 ft / 2.44 m
- Platform Height: 150 ft / 45.72 m
- Swing: 360 Degrees
- Swing Type: Continuous
- Tailswing: 5 ft 6 in. / 1.68 m
- Tire Size: 445/500710 Foam-Filled
- Transport Length: 43 ft / 13.11 m
- Turning Radius - Outside (axles extended): 19 ft 4 in. / 5.89 m
- Turning Radius - Outside (axles retracted): 22 ft 6 in. / 6.86 m
- Ease of transport — no oversized load permit needed (over weight permit is required for highway transportation)
- Telescoping jib provides work envelope flexibility and even more outreach at elevation
- Ideal for general contractors, glaziers, window cleaners, welders and more
- Strong 100,000-psi steel and a dual 1,000 / 500 lb capacity
