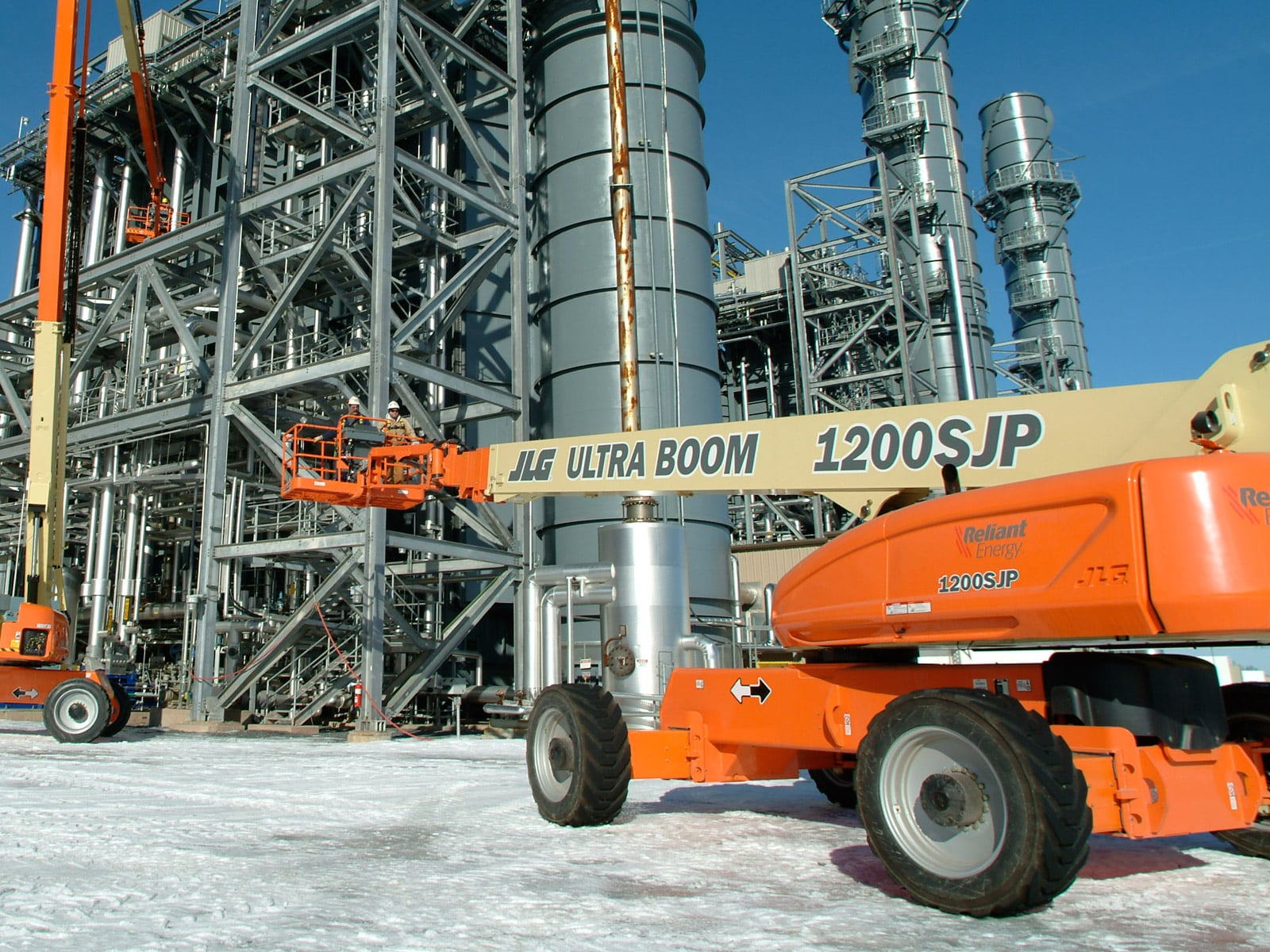

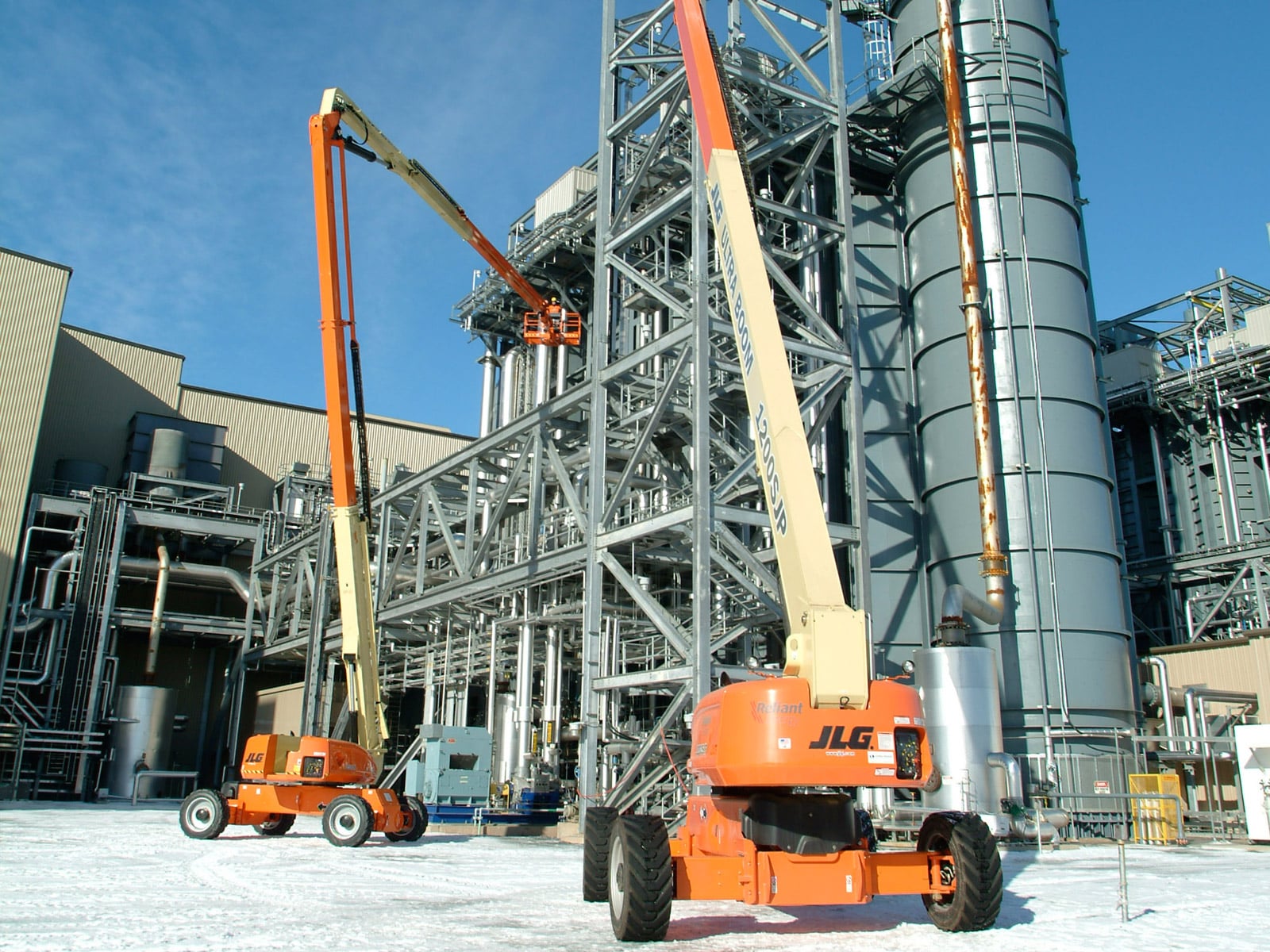

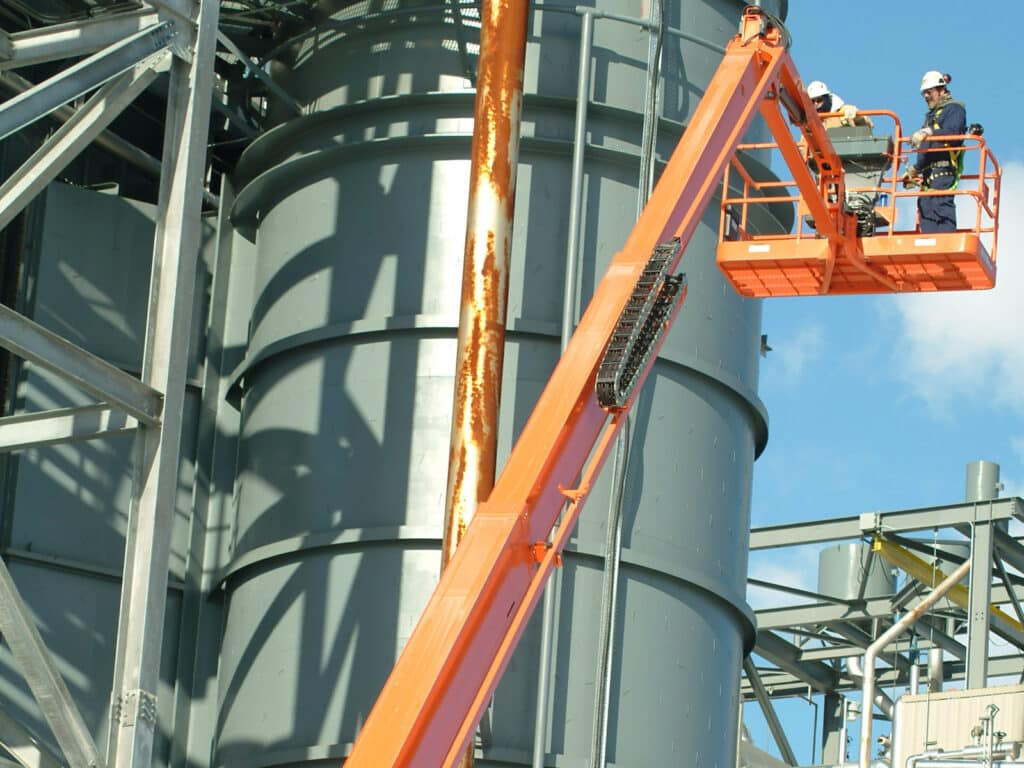

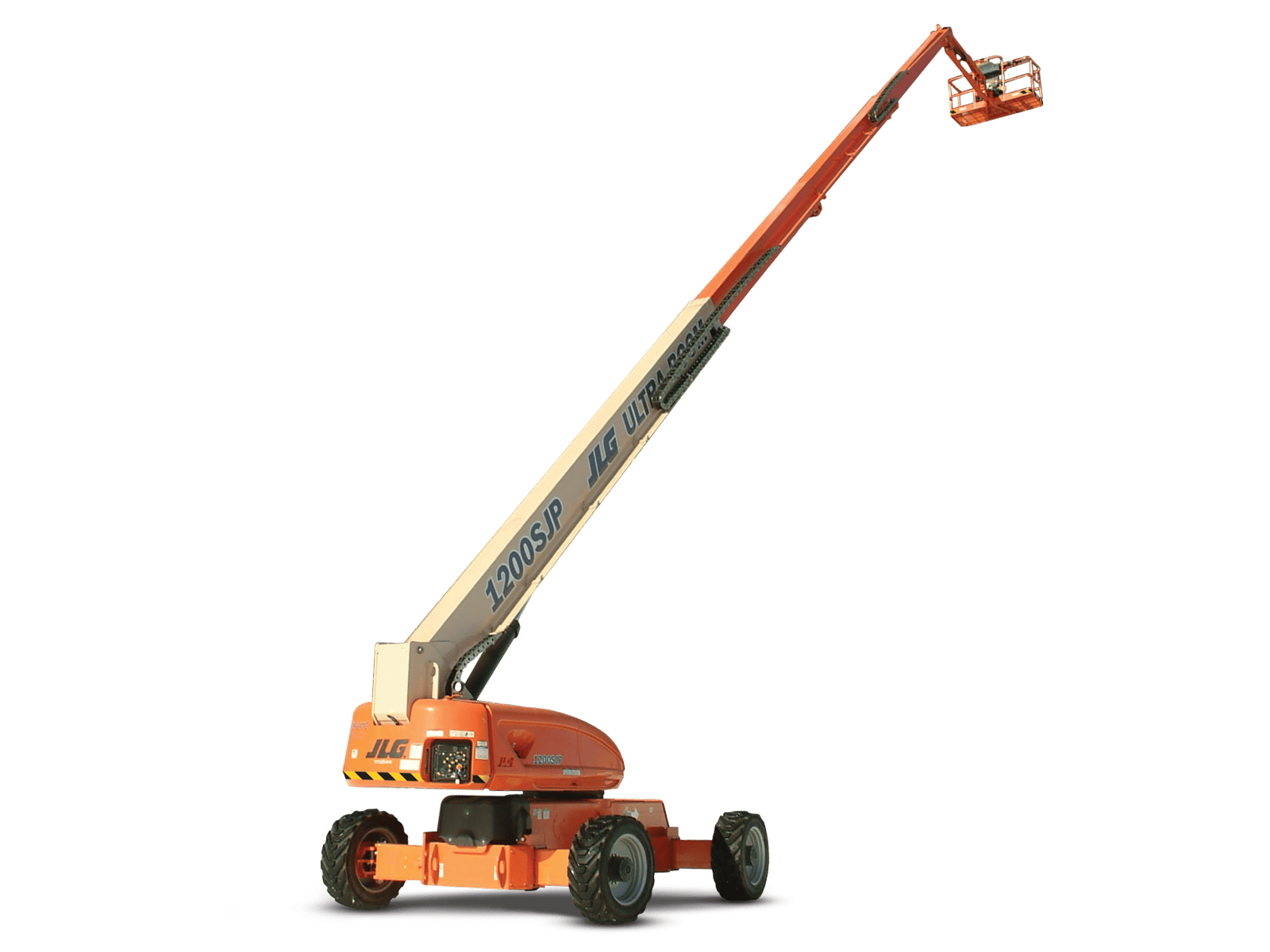

Make JLG
Model 1200SJP
Type Telescopic Booms

Key Specs

  • Platform Height: 120 ft / 36.58 m
  • Platform Capacity - Restricted: 1000 lb / 453.59 kg
  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg
  • Horizontal Outreach: 75 ft / 22.86 m

Key Features

  • Ground to 120 ft up in 95 seconds
  • Stability and capacity from 100,000-psi steel and a dual 1,000 / 500 lb capacity
  • Equipped with a fuel-efficient Tier 4 engine
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 1 ft / 0.3 m
  • Capacity - Fuel Tank: 31 gal. / 117.35 L
  • Capacity - Hydraulic Reservoir: 55 gal. / 208.20 L
  • Drive Speed - 4WD: 3.3 mph / 5.23 km/h
  • Engine Type - Diesel: DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp
  • Gradeability - 4WD: 45 %
  • Horizontal Jib Rotation: 180 Degrees
  • Horizontal Outreach: 75 ft / 22.86 m
  • Jib - Range of articulation: 130 Degrees
  • Machine Height: 10 ft / 3.05 m
  • Machine Length: 44 ft 10 in. / 13.67 m
  • Machine Weight: 40900 lb / 18551.93 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Maximum Ground Bearing Pressure: 99 psi / 6.93 Kg/cm2
  • Overall Width (Axles Extended): 12 ft 6 in. / 3.81 m
  • Platform Capacity - Restricted: 1000 lb / 453.59 kg
  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 120 ft / 36.58 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 5 ft 6 in. / 1.68 m
  • Tire Size: 445/500710 Foam-Filled
  • Transport Length: 34 ft 10 in. / 10.62 m
  • Turning Radius - Outside (axles extended): 19 ft 4 in. / 5.89 m
  • Turning Radius - Outside (axles retracted): 22 ft 6 in. / 6.86 m
  • Ground to 120 ft up in 95 seconds
  • Stability and capacity from 100,000-psi steel and a dual 1,000 / 500 lb capacity
  • Equipped with a fuel-efficient Tier 4 engine
