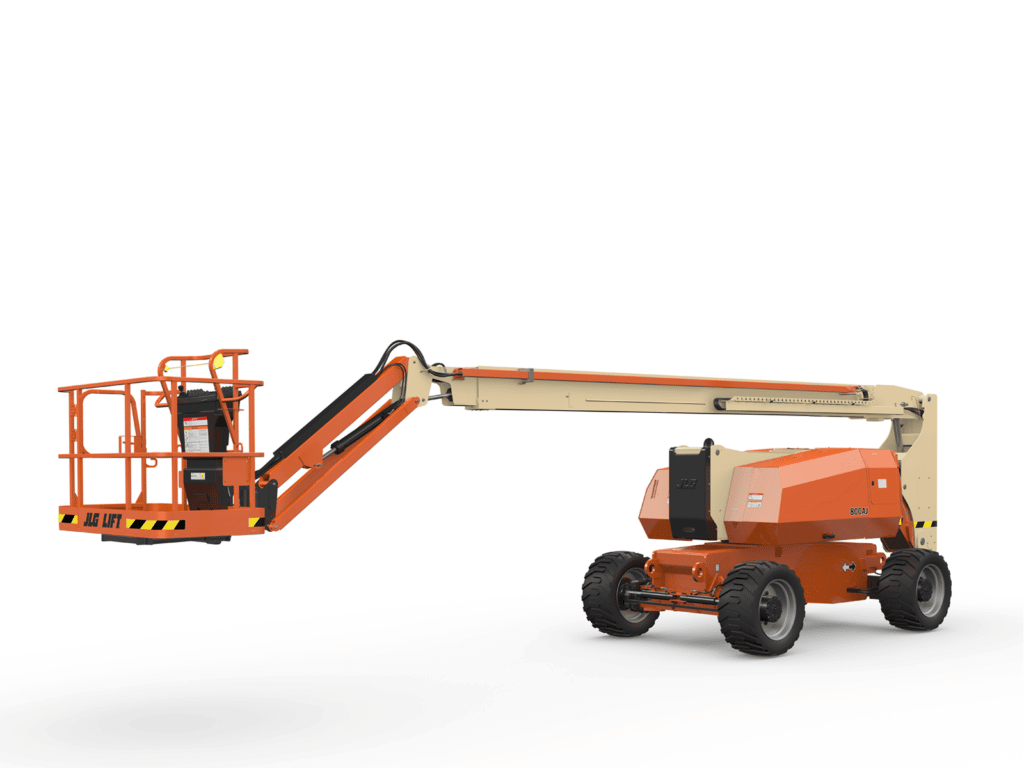

Make JLG
Model 800AJ
Type Engine Powered Boom Lifts

Key Specs

  • Platform Height: 80 ft / 24.38 m
  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg
  • Horizontal Outreach: 51 ft 10 in. / 15.8 m

Key Features

  • Get the extra reach and versatility you need with the best reach envelope in the industry
  • With Workstation in the Skyä accessories, you will have all you need to get the job done
  • Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 0 in. / 0 m
  • Capacity - Fuel Tank: 39 gal. / 147.63 L
  • Capacity - Hydraulic Reservoir: 40 gal. / 151.42 L
  • Drive Speed - 4WD: 3 mph / 4.83 km/h
  • Engine Type - Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
  • Engine Type - Dual Fuel: Ford MSG425 84hp
  • Gradeability - 2WD: 30 %
  • Gradeability - 4WD: 45 %
  • Ground Clearance: 1 ft / 0.3 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 51 ft 10 in. / 15.8 m
  • Jib - Range of articulation: 130 Degrees
  • Machine Height: 9 ft 10 in. / 3 m
  • Machine Length: 36 ft 6 in. / 11.13 m
  • Machine Weight: 34130 lb / 15481.11 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Maximum Ground Bearing Pressure: 76 psi / 5.32 Kg/cm2
  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 80 ft / 24.38 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 2 ft 6 in. / 0.76 m
  • Tire Size: 15-625 Pneumatic
  • Turning Radius - Outside (2WS): 19 ft 8 in. / 5.99 m
  • Turning Radius - Outside (4WS): 11 ft 7 in. / 3.53 m
  • Up and Over Height: 32 ft 1 in. / 9.78 m
  • With Workstation in the Skyä accessories, you will have all you need to get the job done
  • Get the extra reach and versatility you need with the best reach envelope in the industry
  • Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions
