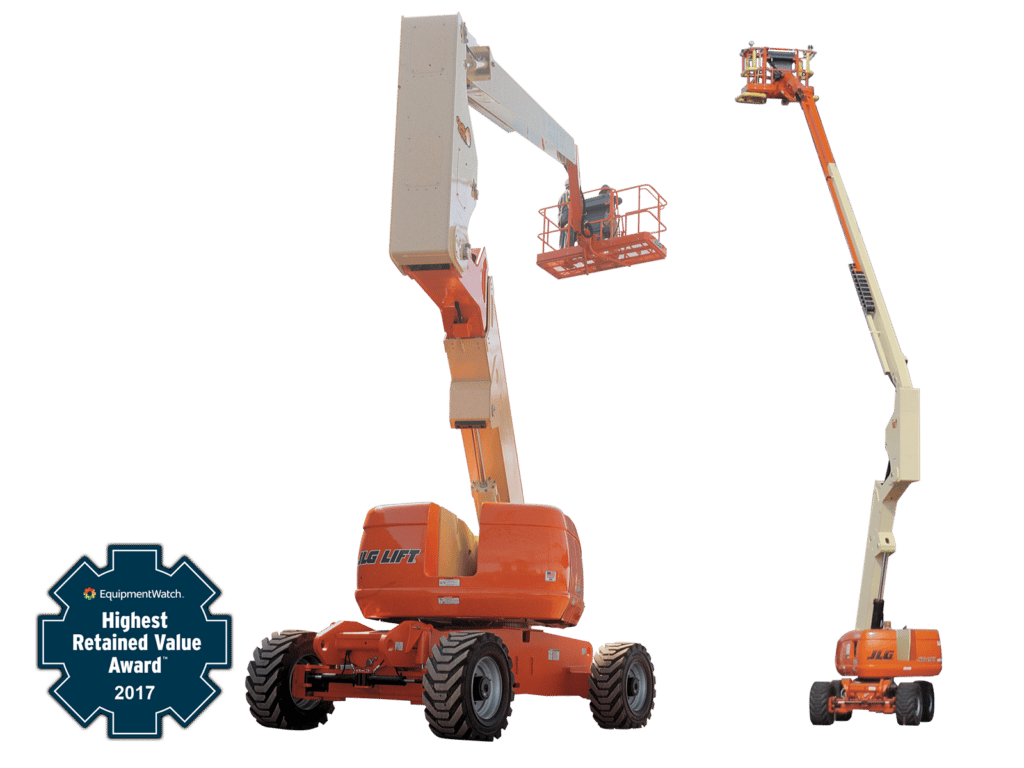

740AJ
Get a Quote
(678) 599-9000
Call
Get a Quote
Home
Catalog
Aerial
Engine Powered Boom Lifts
Current:
740AJ
Make
JLG
Model
740AJ
Type
Engine Powered Boom Lifts
Description
Specifications
Features
Docs & Downloads
Key Specs
Platform Height
:
74 ft / 22.56 m
Platform Capacity - Unrestricted
:
500 lb / 226.80 kg
Horizontal Outreach
:
51 ft 10 in. / 15.8 m
Key Features

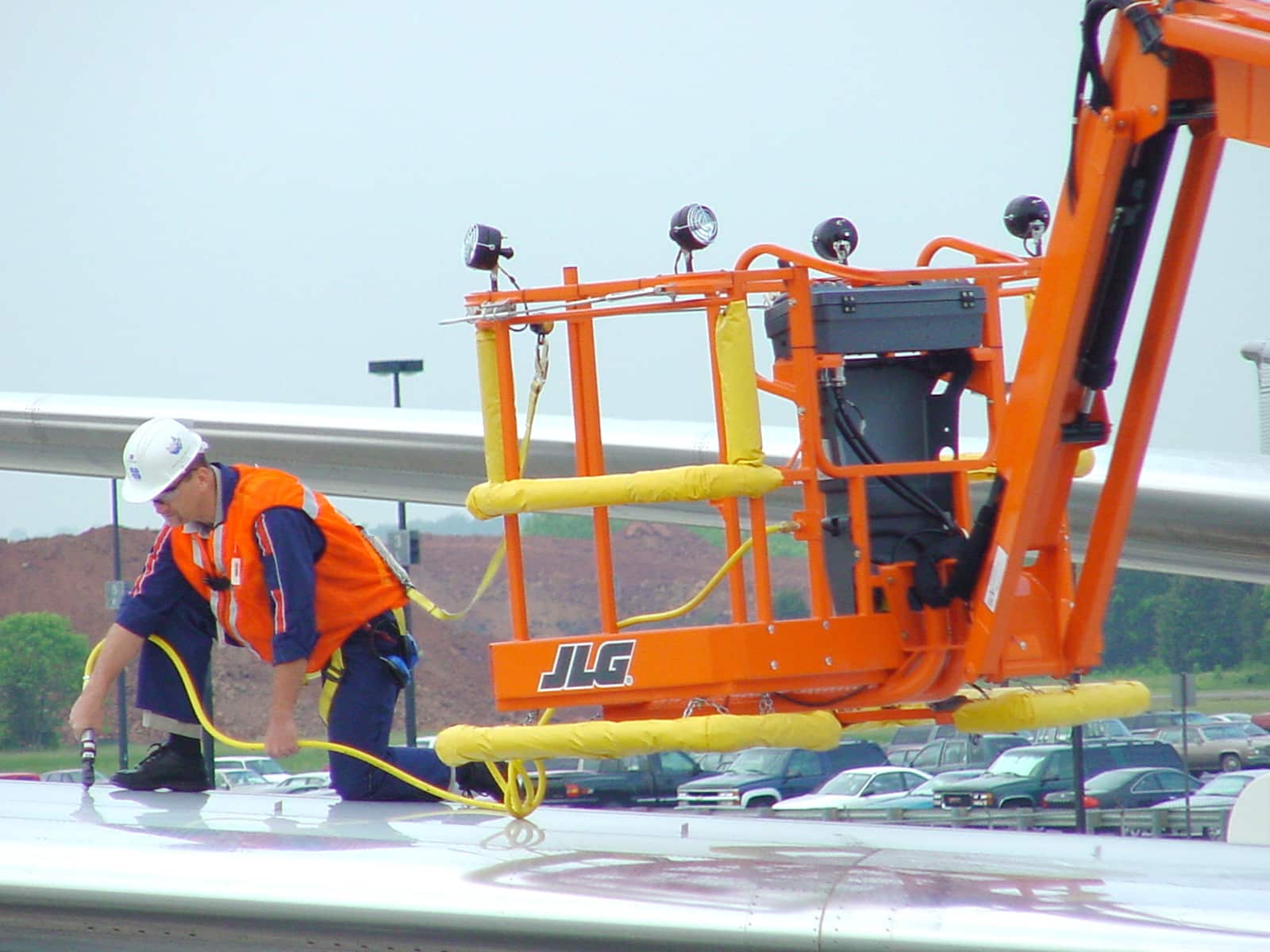

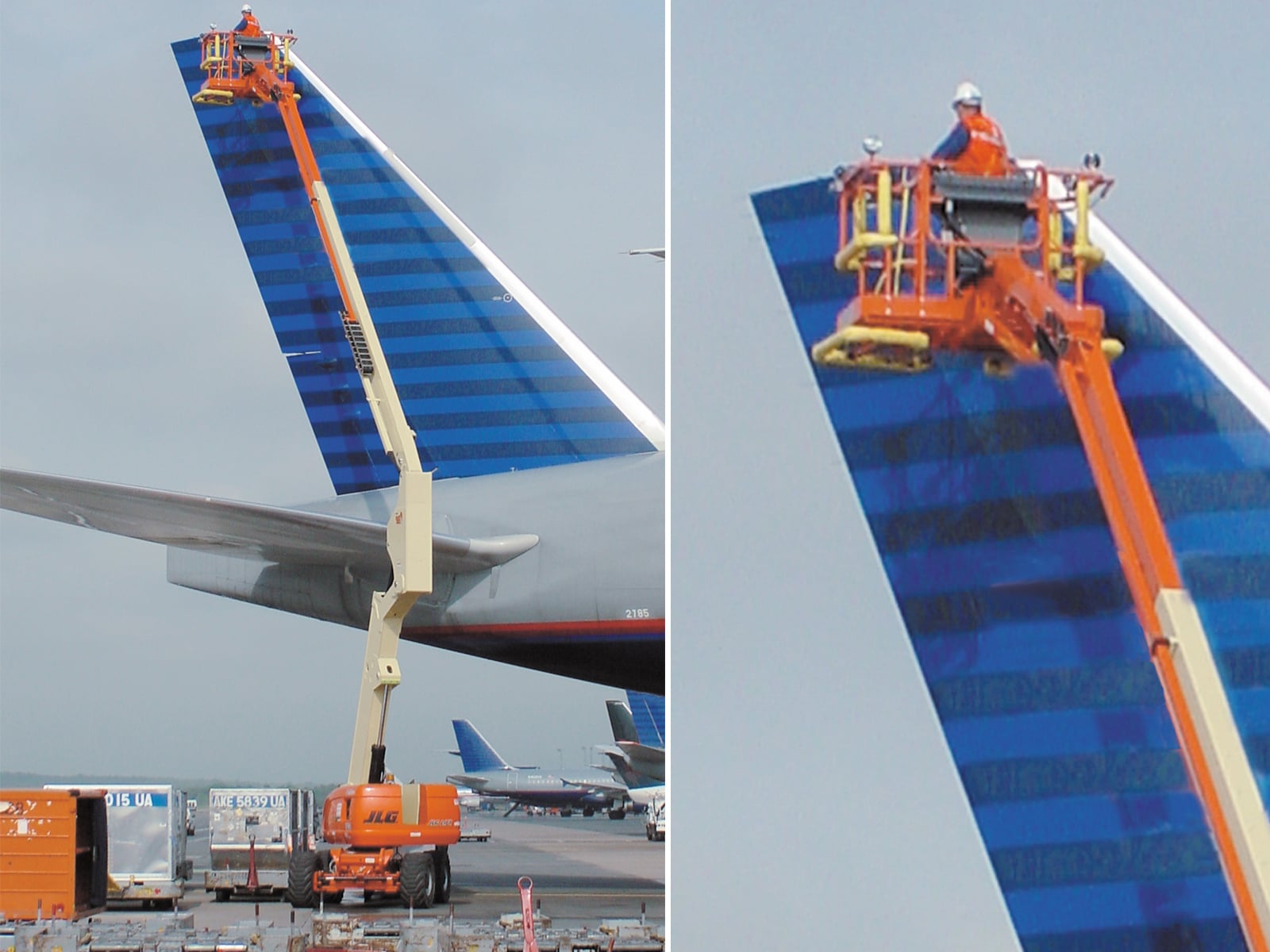

Made specifically for working on today’s aircraft
With the Fall Arrest system, you can move 270 degrees around and 6 ft beyond the platform

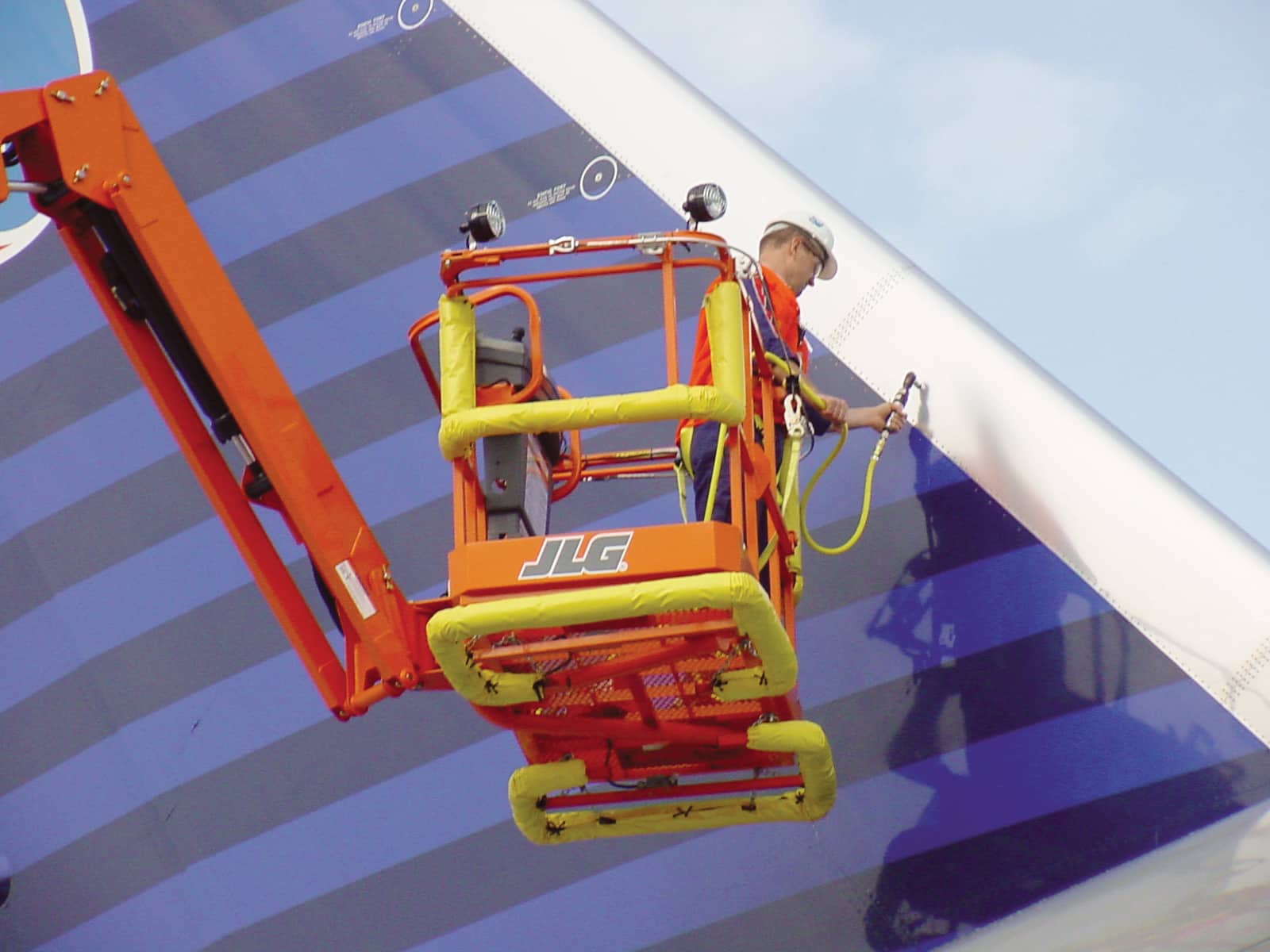

Articulating jib allows you to reach all external surfaces of any aircraft made today
Auxiliary Power:
12 Volts DC
Axle Oscillation:
0 in. / 0 m
Capacity - Fuel Tank:
40 gal. / 151.42 L
Capacity - Hydraulic Reservoir:
48 gal. / 181.70 L
Drive Speed - 4WD:
3 mph / 4.83 km/h
Engine Type - Diesel:
DEUTZ TD 2.9L Tier 4 Final 67 hp
Engine Type - Dual Fuel:
Ford MSG425 84hp
Gradeability - 4WD:
45 %
Ground Clearance:
1 ft / 0.3 m
Horizontal Jib Rotation:
0 Degrees
Horizontal Outreach:
51 ft 10 in. / 15.8 m
Jib - Range of articulation:
130 Degrees
Machine Height:
9 ft 10 in. / 3 m
Machine Length:
36 ft 6 in. / 11.13 m
Machine Weight:
36200 lb / 16420.04 kg
Machine Width:
8 ft 2 in. / 2.49 m
Maximum Ground Bearing Pressure:
61 psi / 4.27 Kg/cm2
Platform Capacity - Unrestricted:
500 lb / 226.80 kg
Platform Dimension A:
3 ft / 0.91 m
Platform Dimension B:
6 ft / 1.83 m
Platform Height:
74 ft / 22.56 m
Swing:
360 Degrees
Swing Type:
Continuous
Tailswing:
2 ft 6 in. / 0.76 m
Tire Size:
445/55D19.5 Foam-Filled Wide Lug Tread
Turning Radius - Outside (4WS):
14 ft 6 in. / 4.42 m
Up and Over Height:
25 ft 1 in. / 7.65 m
Made specifically for working on today’s aircraft
With the Fall Arrest system, you can move 270 degrees around and 6 ft beyond the platform
Articulating jib allows you to reach all external surfaces of any aircraft made today
