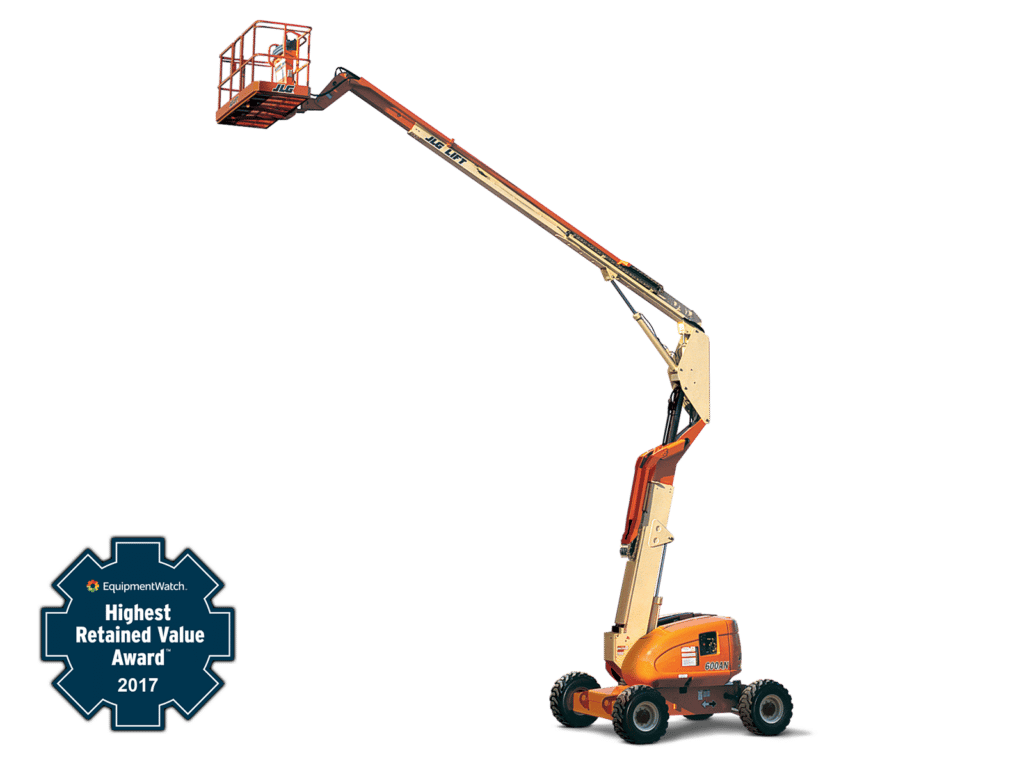

600AN Narrow
| Make | JLG |
| Model | 600AN Narrow |
| Type | Engine Powered Boom Lifts |
Key Specs
- Platform Height: 60 ft 5 in. / 18.42 m
- Platform Capacity - Restricted: 1000 lb / 453.59 kg
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 39 ft 7 in. / 12.07 m
Key Features
- Best reach envelope in its class
- Optional articulating jib gets you into hard-to-reach places
- Narrow chassis for confined work areas
- Equipped with a fuel-efficient Tier 4 engine
- Auxiliary Power: 12 Volts DC
- Axle Oscillation: 8 in. / 0.2 m
- Capacity - Fuel Tank: 30 gal. / 113.56 L
- Capacity - Hydraulic Reservoir: 30.6 gal. / 115.83 L
- Drive Speed - 2WD: 4.3 mph / 6.84 km/h
- Engine Type - Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
- Engine Type - Dual Fuel: Ford MSG425 84hp
- Gradeability - 2WD: 30 %
- Ground Clearance: 1 ft / 0.3 m
- Horizontal Outreach: 39 ft 7 in. / 12.07 m
- Jib - Range of articulation: 0 Degrees
- Machine Height: 8 ft 4 in. / 2.54 m
- Machine Length: 26 ft 5 in. / 8.05 m
- Machine Weight: 24100 lb / 10931.58 kg
- Machine Width: 7 ft / 2.13 m
- Maximum Ground Bearing Pressure: 94 psi / 6.58 Kg/cm2
- Platform Capacity - Restricted: 1000 lb / 453.59 kg
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Platform Dimension A: 3 ft / 0.91 m
- Platform Dimension B: 8 ft / 2.44 m
- Platform Height: 60 ft 5 in. / 18.42 m
- Swing: 360 Degrees
- Swing Type: Continuous
- Tailswing: 5 in. / 0.13 m
- Tire Size: 14 x 17.5 Air Boss
- Turning Radius - Outside (4WS): 11 ft 2 in. / 3.4 m
- Up and Over Height: 26 ft 7 in. / 8.1 m
- Best reach envelope in its class
- Narrow chassis for confined work areas
- Equipped with a fuel-efficient Tier 4 engine
- Optional articulating jib gets you into hard-to-reach places
