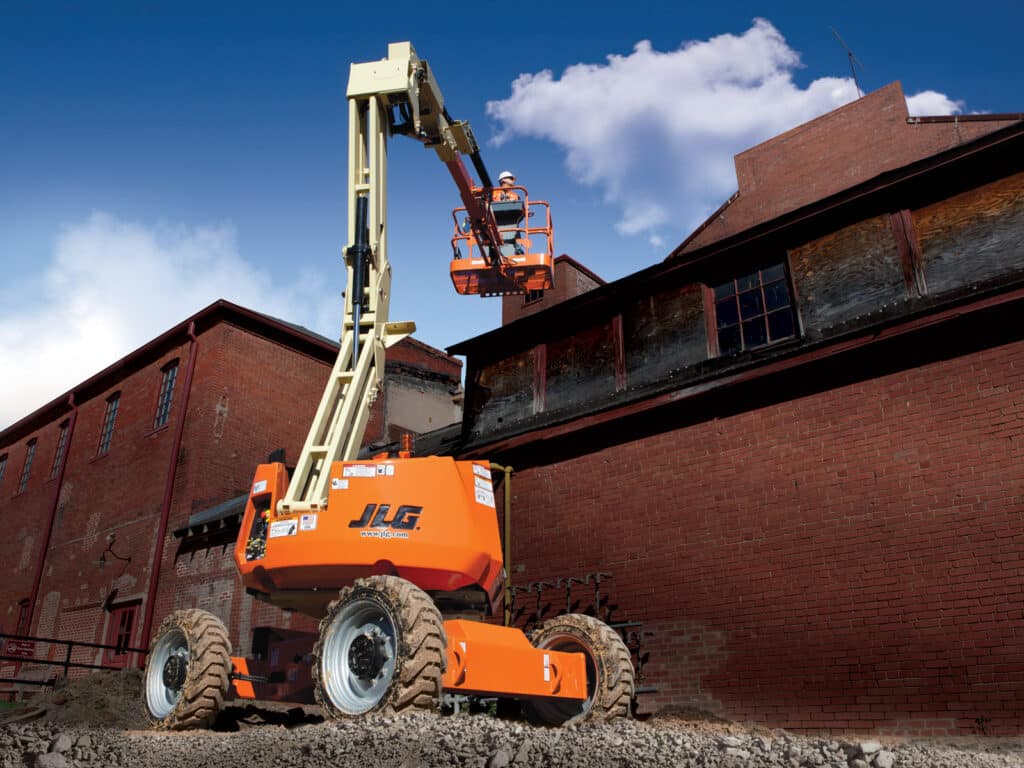

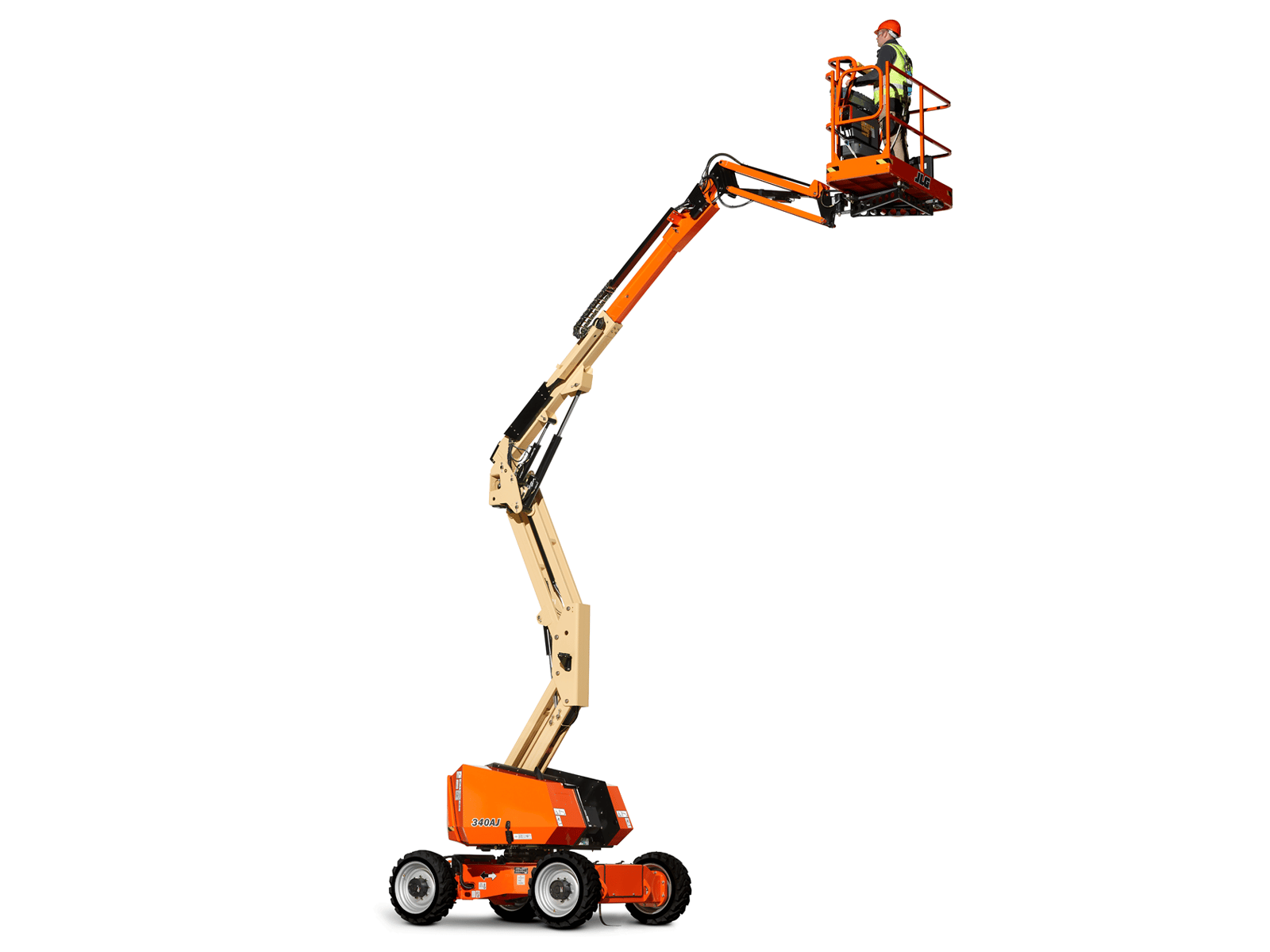

340AJ
Key Specs
- Platform Height: 33 ft 10 in. / 10.31 m
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 19 ft 11 in. / 6.07 m
Key Features
- Lower cost of ownership
- Steel hoods provide added durability
- Environmentally-friendly Tier 4 diesel engine
- Industry-leading terrainability
- Ideal for general contractors, steel erectors, painters, stadium construction and more
- Auxiliary Power: 12 Volts DC
- Axle Oscillation: 6 in. / 0.15 m
- Capacity - Fuel Tank: 13 gal. / 49.21 L
- Capacity - Hydraulic Reservoir: 20.6 gal. / 77.98 L
- Drive Speed - 4WD: 3.1 mph / 4.99 km/h
- Engine Type - Diesel: Kubota D1105 24.8 hp
- Engine Type - Dual Fuel: PSI/GM 28.7 hp
- Gradeability - 4WD: 45 %
- Ground Clearance: 10 in. / 0.25 m
- Horizontal Jib Rotation: 0 Degrees
- Horizontal Outreach: 19 ft 11 in. / 6.07 m
- Jib - Range of articulation: 144 Degrees
- Machine Height: 6 ft 7 in. / 2.01 m
- Machine Length: 18 ft 2 in. / 5.54 m
- Machine Weight: 9700 lb / 4399.85 kg
- Machine Width: 6 ft 4 in. / 1.93 m
- Maximum Ground Bearing Pressure: 151 psi / 10.57 Kg/cm2
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Platform Dimension A: 2 ft 6 in. / 0.76 m
- Platform Height: 33 ft 10 in. / 10.31 m
- Swing: 355 Degrees
- Swing Type: Non-Continuous
- Tailswing: 2 in. / 0.05 m
- Tire Size: 265/50020 Lug Tread
- Turning Radius - Outside: 5 ft / 1.52 m
- Up and Over Height: 17 ft / 5.18 m
- Lower cost of ownership
- Ideal for general contractors, steel erectors, painters, stadium construction and more
- Industry-leading terrainability
- Environmentally-friendly Tier 4 diesel engine
- Steel hoods provide added durability
